Mitsui Marine Main Engine Control Position Indicator Prop Shaft RPM 120rpm Panel

Product Description

Mitsui Marine Main Engine Control Position Indicator Prop Shaft RPM 120rpm Panel

Mitsui Marine Main Engine Control Position Indicator / Propeller Shaft RPM Indicator Panel

Genuine used marine engine control panel manufactured by Mitsui Engineering & Shipbuilding Co., Ltd.

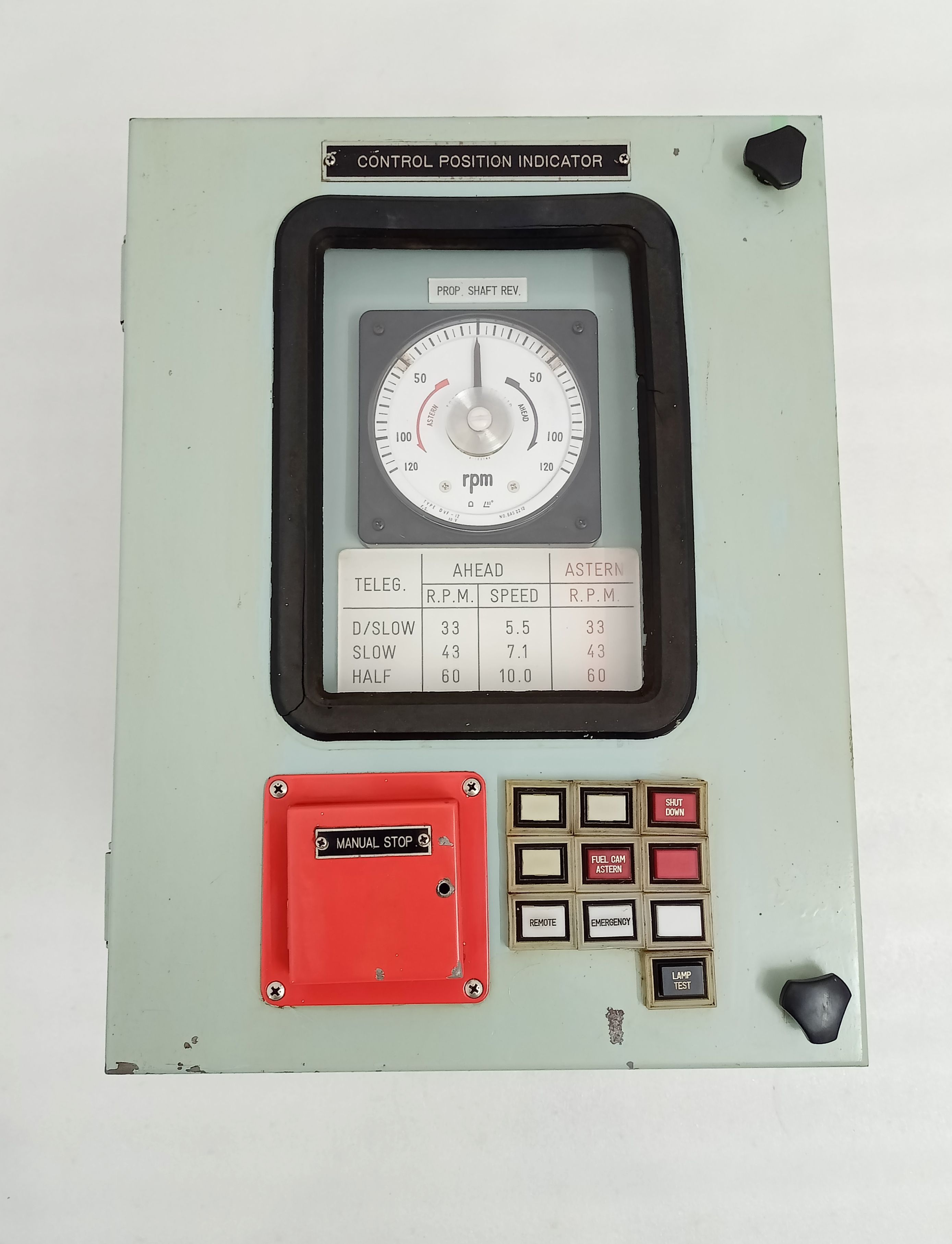

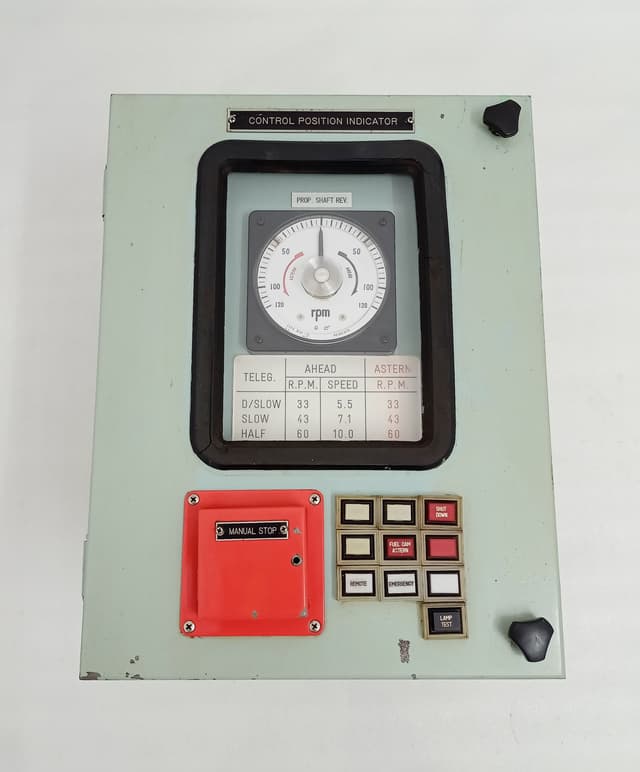

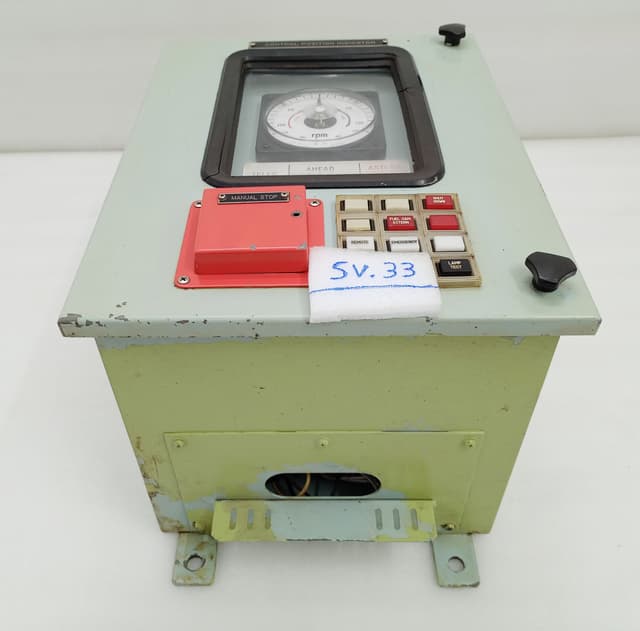

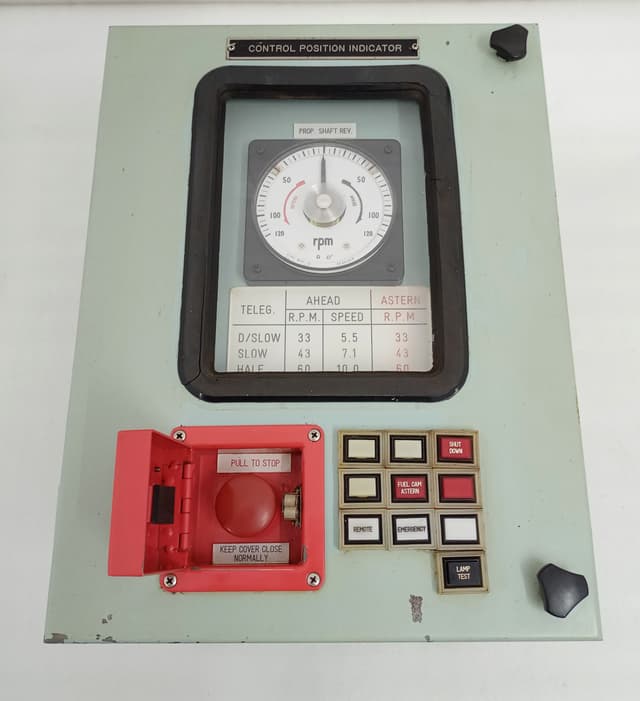

The panel is marked CONTROL POSITION INDICATOR and includes a PROP. SHAFT REV. RPM indicator, engine telegraph RPM/speed reference table, manual stop, shutdown, fuel cam astern, remote, emergency and lamp test controls.

Details visible on the unit:

• Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd.
• Application: Marine Main Engine Control System
• Panel Function: Control Position Indicator
• Propeller Shaft RPM Indicator
• RPM Scale: 0–120 RPM
• Direction indication: AHEAD / ASTERN
• Engine Telegraph Reference:
  • D/SLOW: Ahead 33 RPM / Speed 5.5 / Astern 33 RPM
  • SLOW: Ahead 43 RPM / Speed 7.1 / Astern 43 RPM
  • HALF: Ahead 60 RPM / Speed 10.0 / Astern 60 RPM
• Manual Stop
• Shutdown
• Fuel Cam Astern
• Remote
• Emergency
• Lamp Test
• Electrical relay/control components and wiring inside enclosure

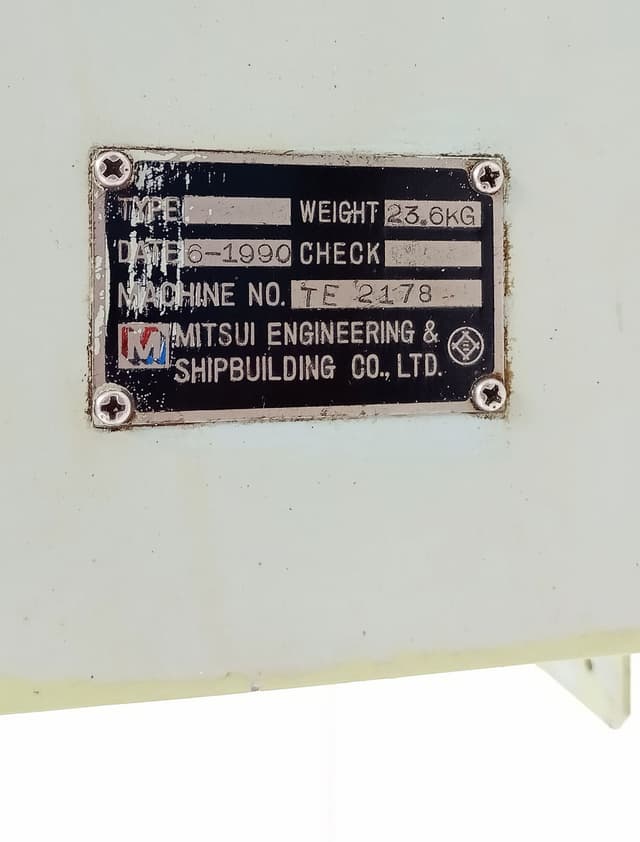

• Machine No.: TE-2178
• Date: 6-1990

Brand: Mitsui
Type: Control Position Indicator
Application: Marine Main Engine
Equipment Type: Engine Control Panel
Function: Propeller Shaft RPM / Engine Control Position Indication
RPM Range: 0–120 RPM
Direction: Ahead / Astern
Machine No.: TE-2178
Date: 6-1990
Condition: Used
Country/Origin: Japan

Mitsui Main Engine Control Position Indicator Box Shaft RPM TE-2178 6-1990Mitsui Engineering Marine Propulsion RPM Indicator Panel Machine TE-2178Brand: Mitsui Engineering & Shipbuilding Co., Ltd. (Japan)System Designation: Control Position Indicator StationMachine Serial Number: TE-2178Manufacture Date: June 1990 (6-1990)Integrated Gauge: Propeller Shaft Revolutions (0–120 RPM Ahead/Astern Meter)Core Command Buttons: Guarded Manual Stop, Fuel Cam Astern, Remote, Emergency, Shut Down, Lamp TestEnclosure Type: Heavy-Duty Steel Wall Mount (Hinged with Dual Locking Knobs)Genuine Mitsui Engineering Marine Engine Control Position Indicator Box — Machine No. TE-2178Up for listing is a heavy-duty, commercial maritime control room module: the Main Engine Control Position Indicator Enclosure. Manufactured in Japan by Mitsui Engineering & Shipbuilding Co., Ltd. in 1990, this safety station manages and monitors primary propulsion feedback parameters on large cargo vessels.Detailed System Hardware Layout:

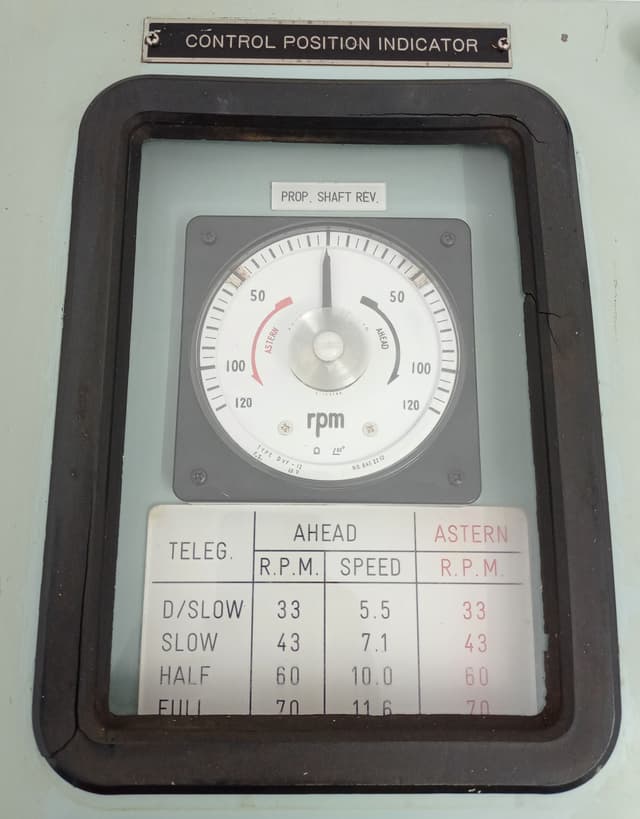

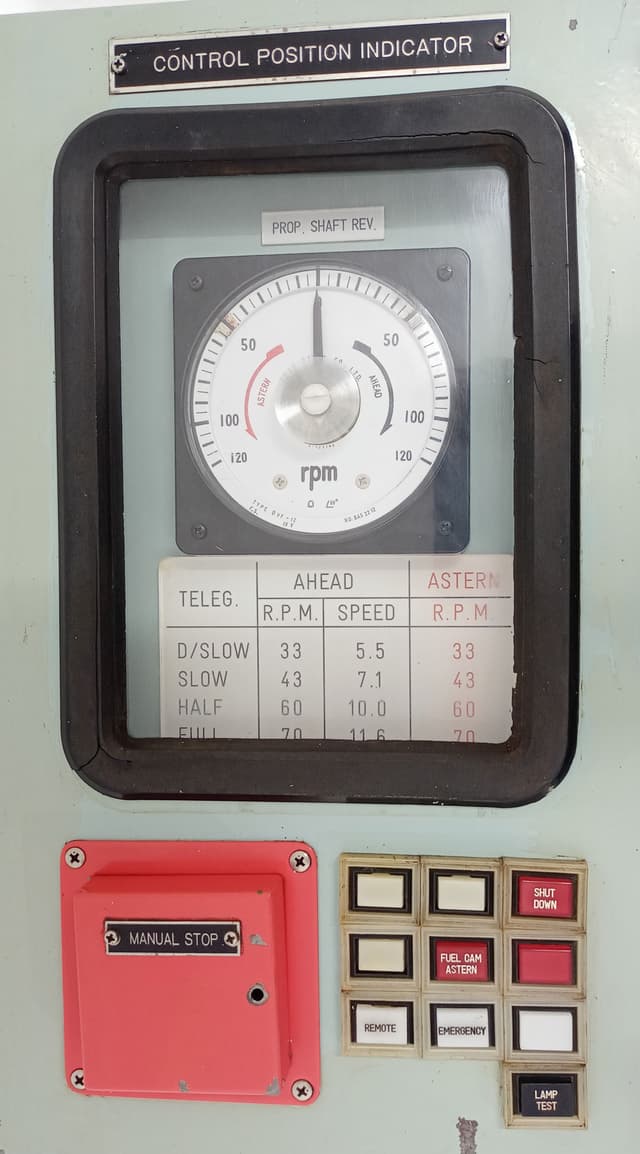

• Propeller Shaft Feedback Gauge: Features a central, high-visibility, center-zero analog RPM meter measuring 0 to 120 RPM symmetrically for both Ahead and Astern directional states.
• Telegraph Reference Plate: An integrated screen-printed matrix mapping reference targets for Dead Slow, Slow, and Half modes with corresponding exact Ahead/Astern engine RPM thresholds and speed values.

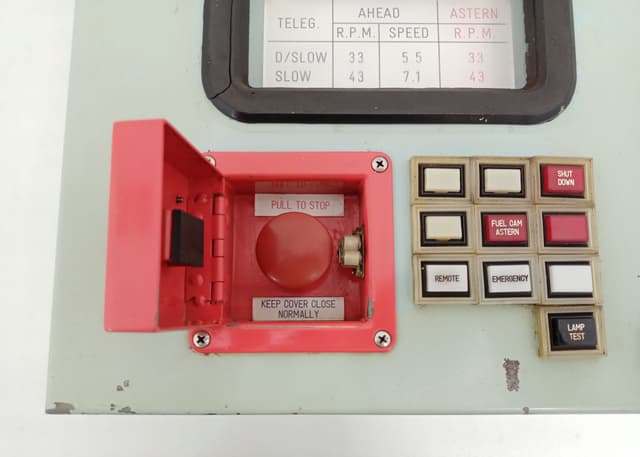

• Emergency Interface Matrix: Features a prominent, spring-loaded red Manual Stop flip-guard override block. Accompanied by a square industrial push-button grid tracking Shut Down, Fuel Cam Astern, Remote, Emergency, and Lamp Test automation paths.

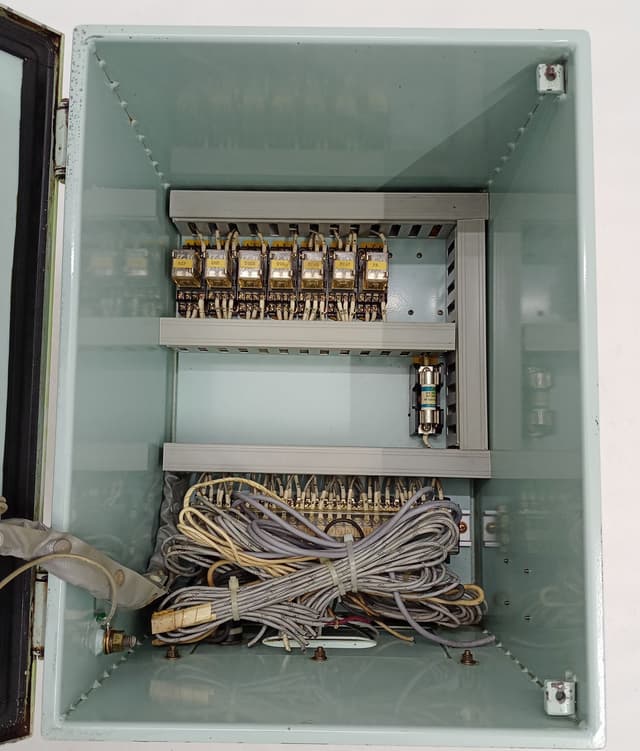

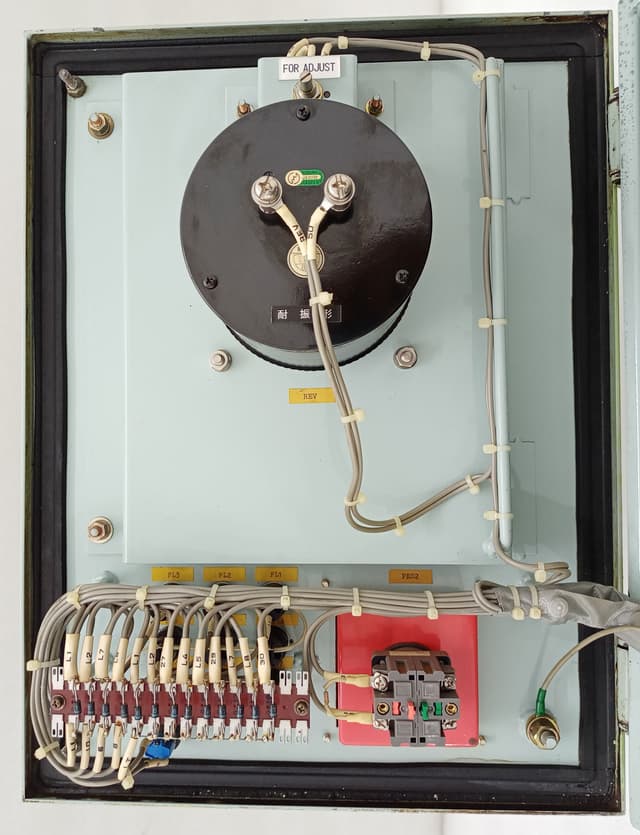

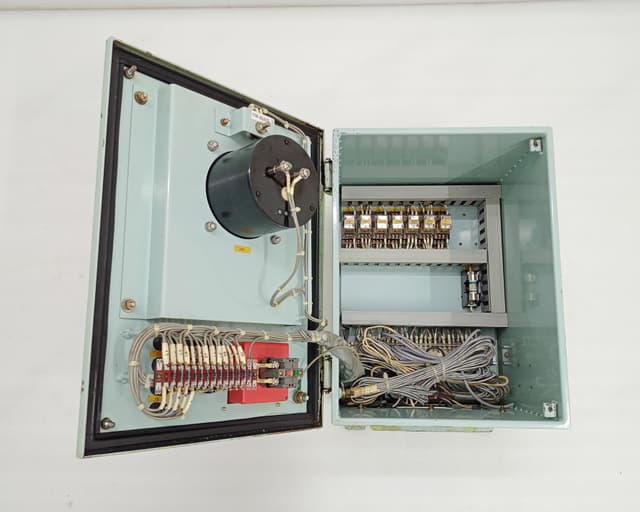

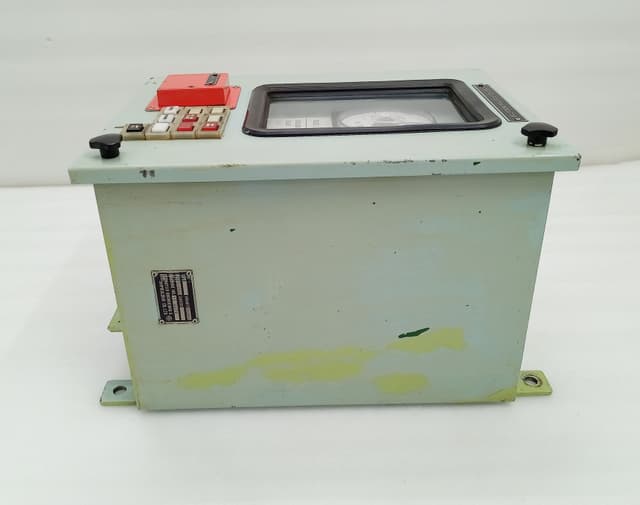

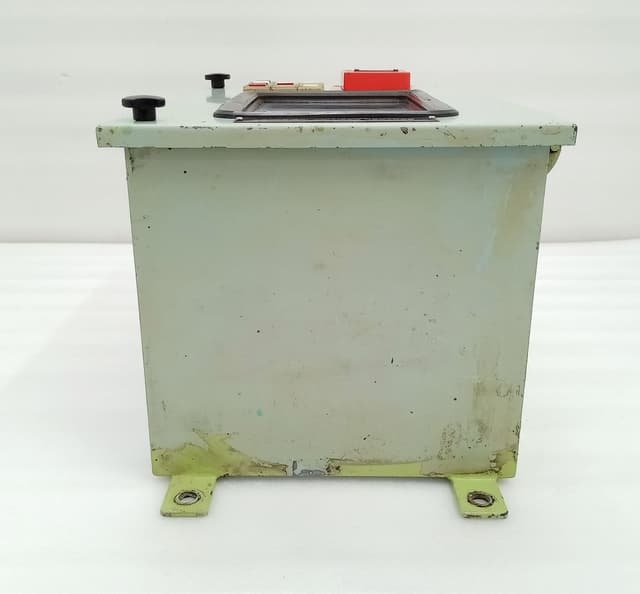

• Pristine Internal Component Chassis: The internal door back plate protects a shielded moving-coil housing and a neat barrier terminal strip. The inner cabinet houses a clean row of matching industrial plug-in relays, an enclosed protective fuse block, and a bundled factory wire trunk.
