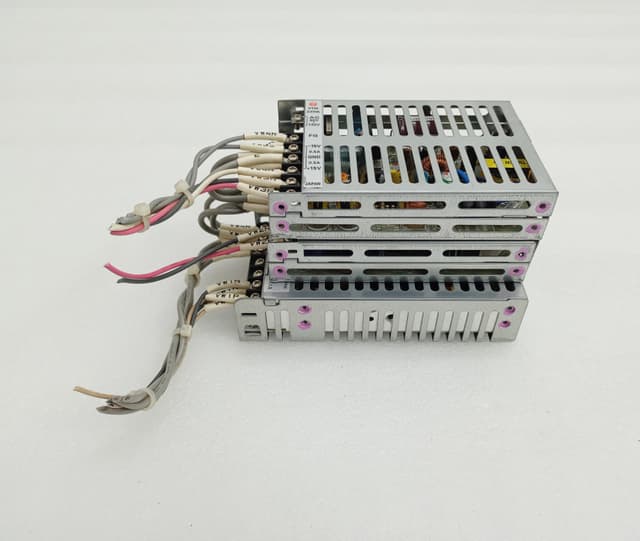

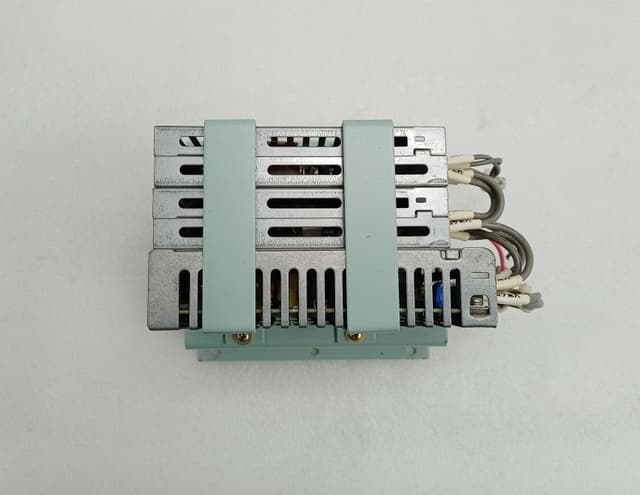

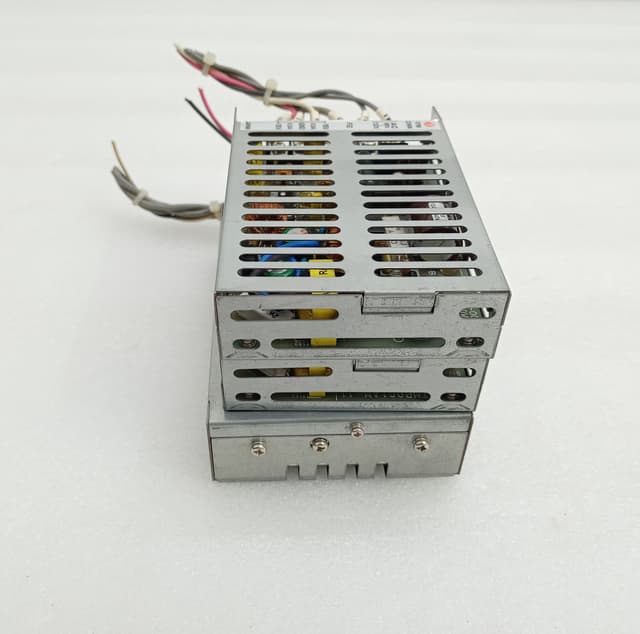

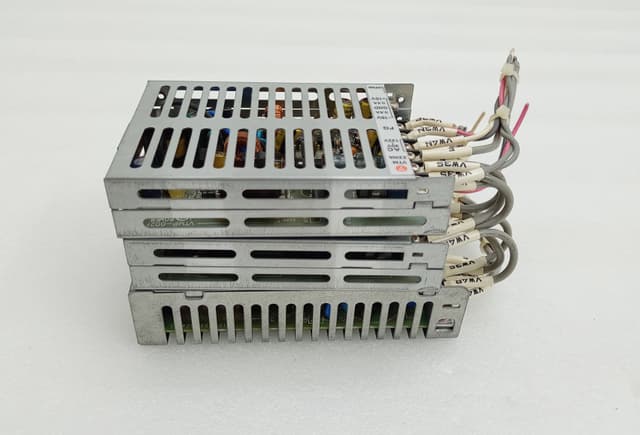

ETA Electric Triple Power Supply Assembly VTA24SA VTM24SA VTM23WA Marine Panel

Product Description

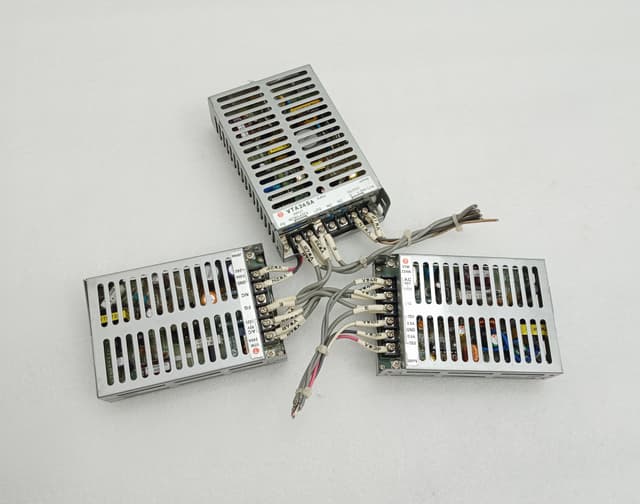

ETA Electric Triple Power Supply Assembly VTA24SA VTM24SA VTM23WA Marine Panel

• Brand: ETA Electric Industry Co., Ltd.
• MPN: VTA24SA / VTM24SA / VTM23WA
• Type: Multi-Output Switching Power Supply Assembly
• Output Voltages: +24V, +15V, -15V
• Input Voltage: 90–132V AC (115V Nominal)

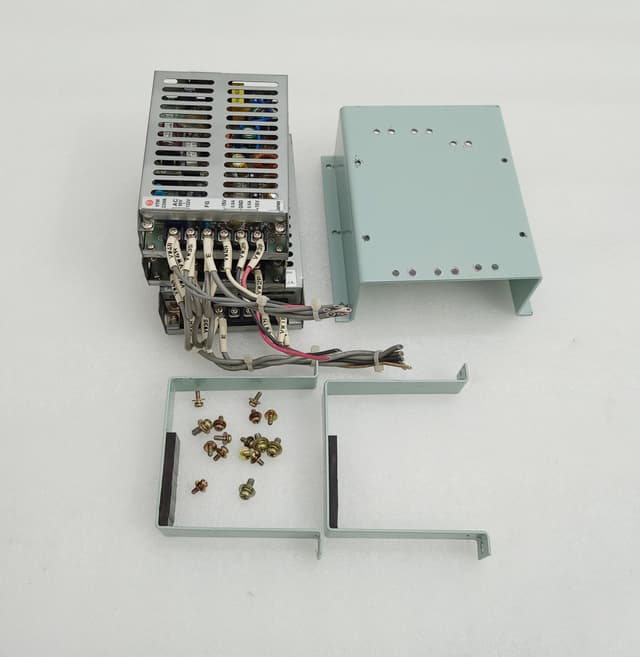

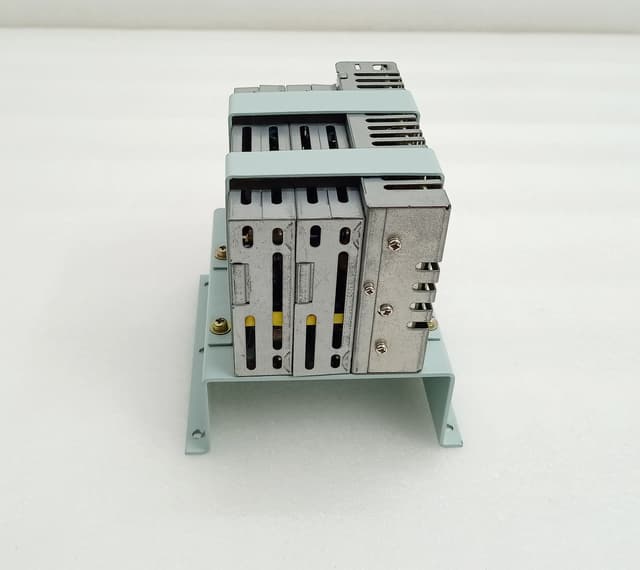

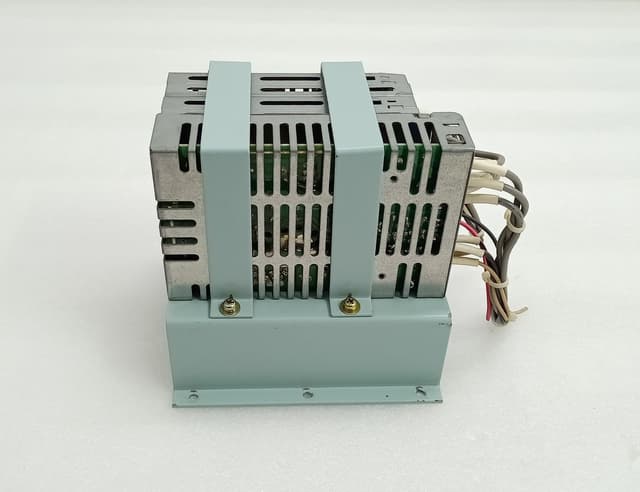

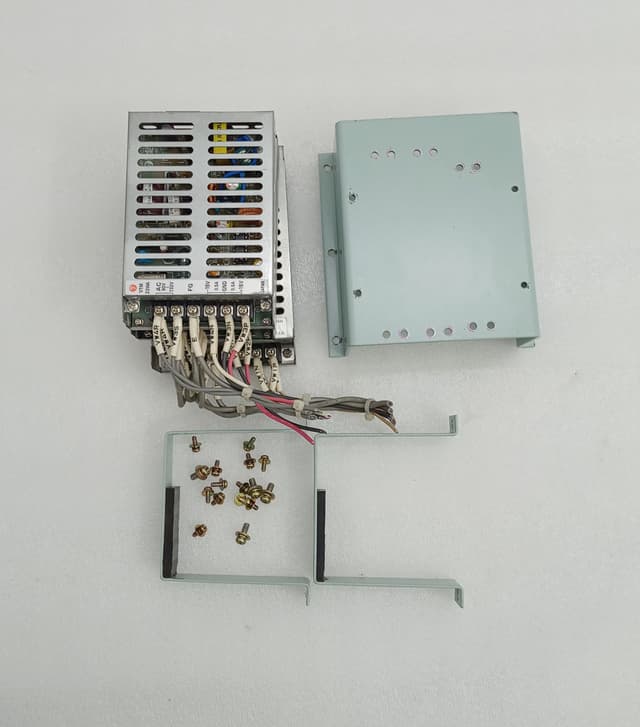

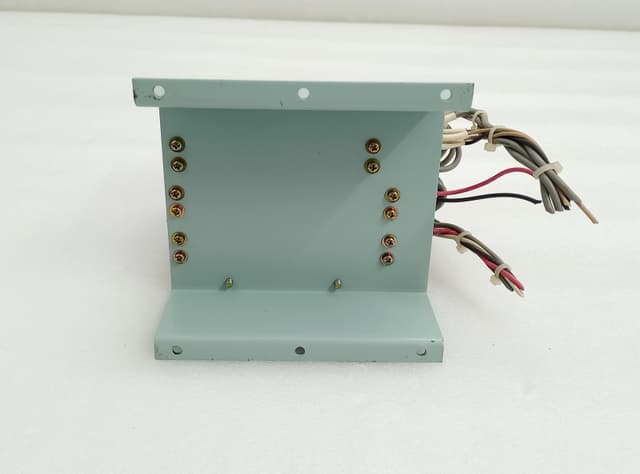

• Mounting Type: Integrated Bracket Chassis Base
• Country/Region of Manufacture: Japan

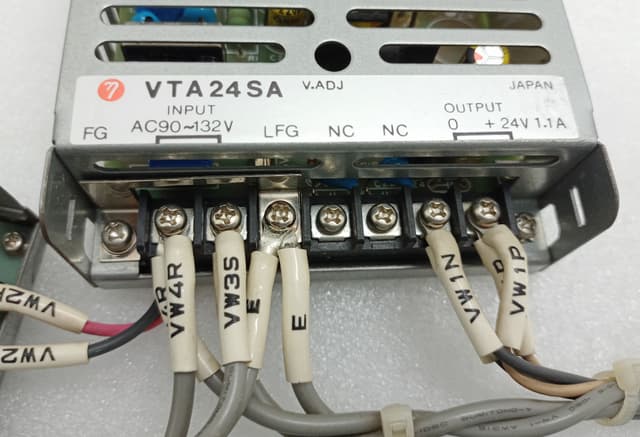

1. Module: ETA Electric VTA24SA (Regulated Switching Power Supply)

• Input Voltage: AC 90–132V (50/60Hz)
• DC Output: +24V DC @ 1.1A
• Country of Manufacture: Japan

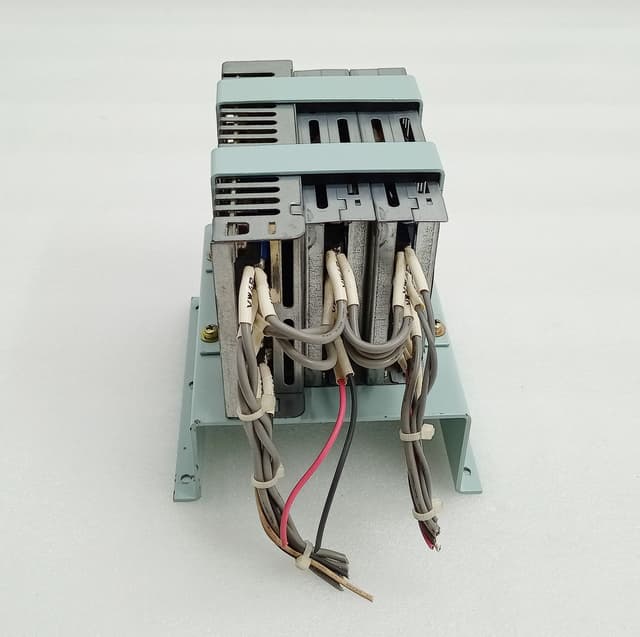

• Factory Harness Wire Mapping:
  • FG (Frame Ground): Wire tag [VW4R]
  • Input (AC Line): Wire tag [VW3S]
  • LFG (Line Frame Ground): Wire tag [E]
  • NC / NC: No Connection
  • Output 0 (DC Return): Wire tag [VW1N]
  • Output +24V: Wire tag [VW1P]

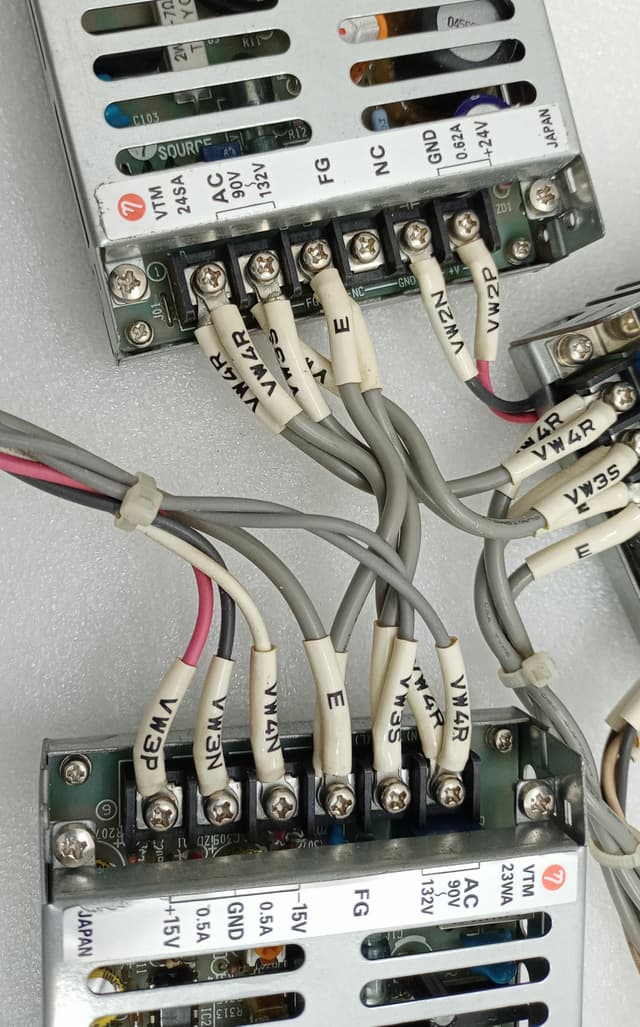

1. Module: ETA Electric VTM24SA (Power Source Module)

• Input Voltage: AC 90–132V (50/60Hz)
• DC Output: +24V DC @ 0.62A
• Country of Manufacture: Japan
• Factory Harness Wire Mapping:
  • AC Inputs: Wire tags [VW4R] and [VW4R]
  • FG (Frame Ground): Wire tag [E]
  • NC: No Connection
  • GND (DC Return): Wire tag [VW2N]
  • +24V Output: Wire tag [VW2P]

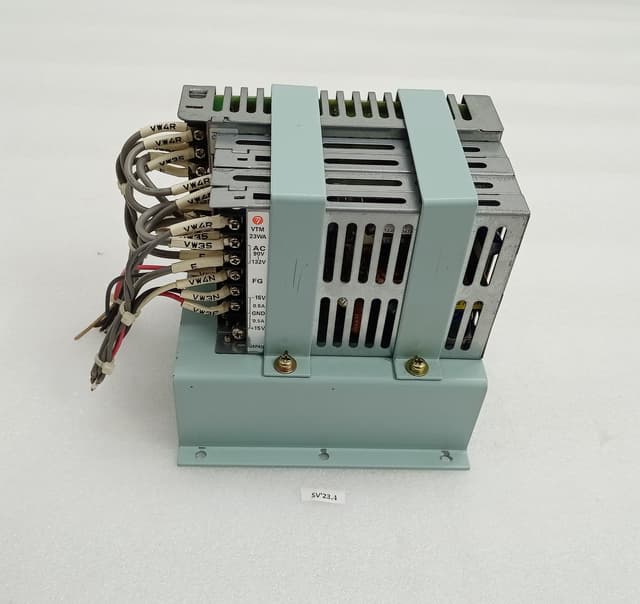

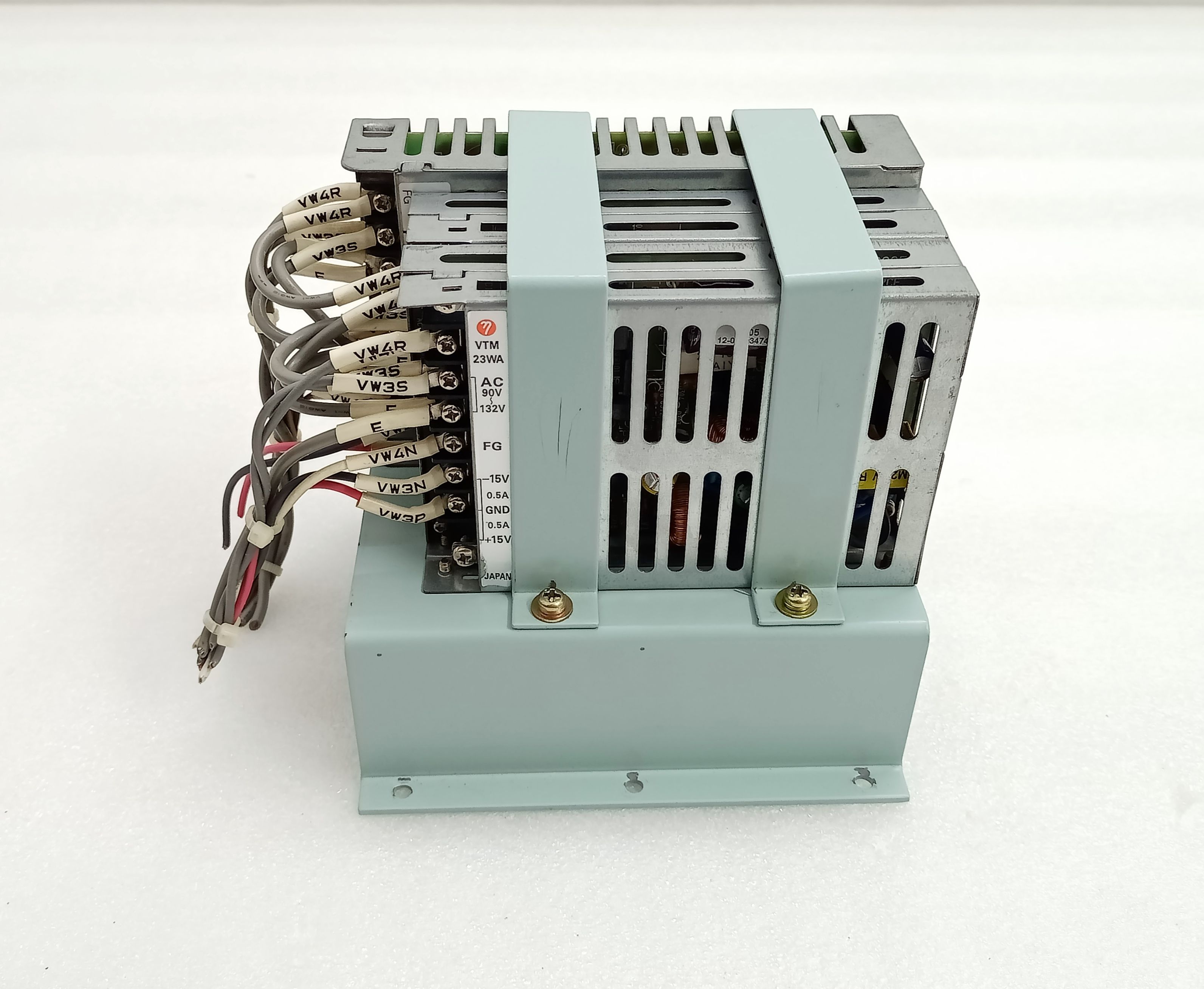

1. Module: ETA Electric VTM23WA (Triple Output Power Supply)

• Input Voltage: AC 90–132V (50/60Hz)
• DC Outputs: Triple Rail (+15V @ 0.5A | -15V @ 0.5A | Shared GND)
• Country of Manufacture: Japan

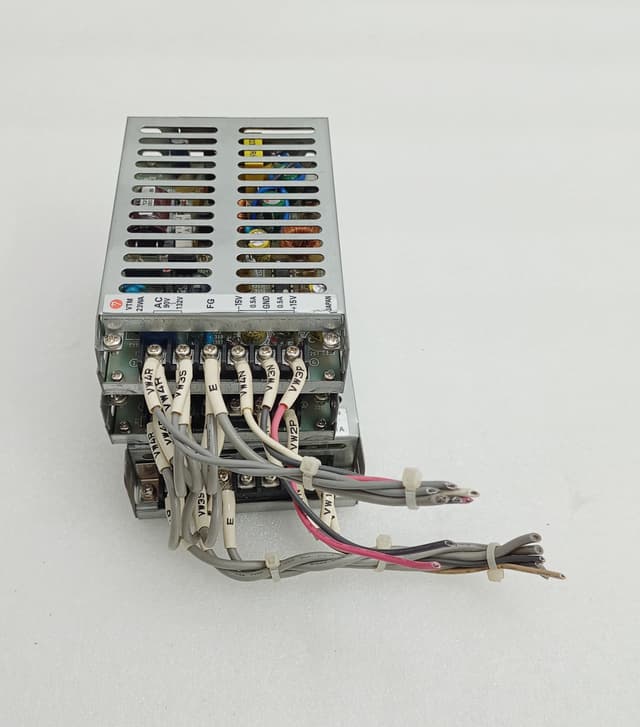

• Factory Harness Wire Mapping:
  • +15V Output: Wire tag [VW3P]
  • 0.5A Rail Return: Wire tag [VW3N]
  • GND (Common Ground): Wire tag [VW4N]
  • 0.5A Rail Return: Wire tag [E]
  • -15V Output: Wire tag [VW4R]
  • FG (Frame Ground): Wire tag [VW3S]
  • AC Inputs: Wire tag [VW4R] and [VW4R]
