Mitsui BMS-1500 Marine Engine Control Panel /Machine No. E-7984 NV Type NOA-3720

Product Description

Mitsui BMS-1500 Marine Engine Control Panel /Machine No. E-7984 NV Type NOA-3720

MITSUI ENGINEERING & SHIPBUILDING CO., LTD.

BMS-1500 MARINE ENGINE MANEUVERING / CONTROL PANEL

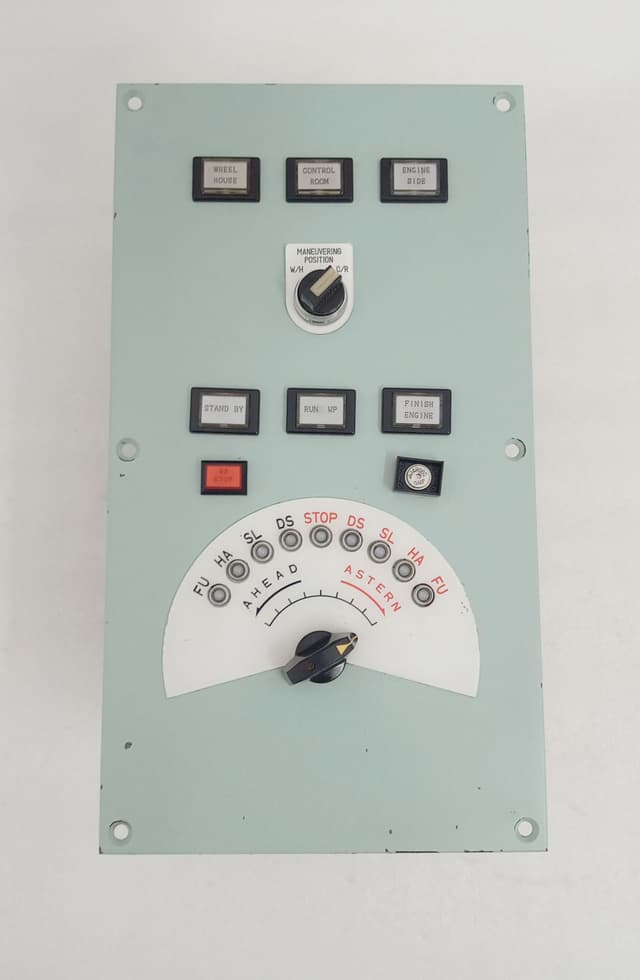

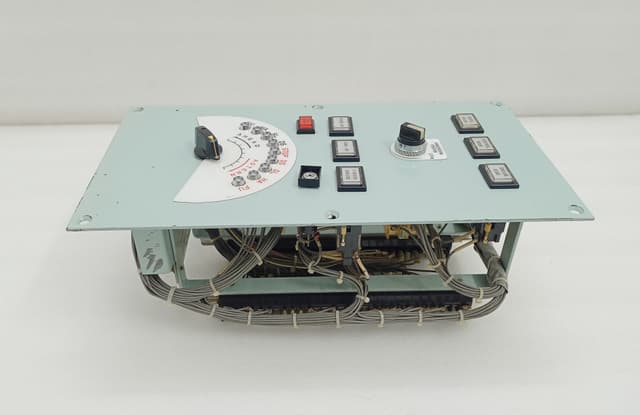

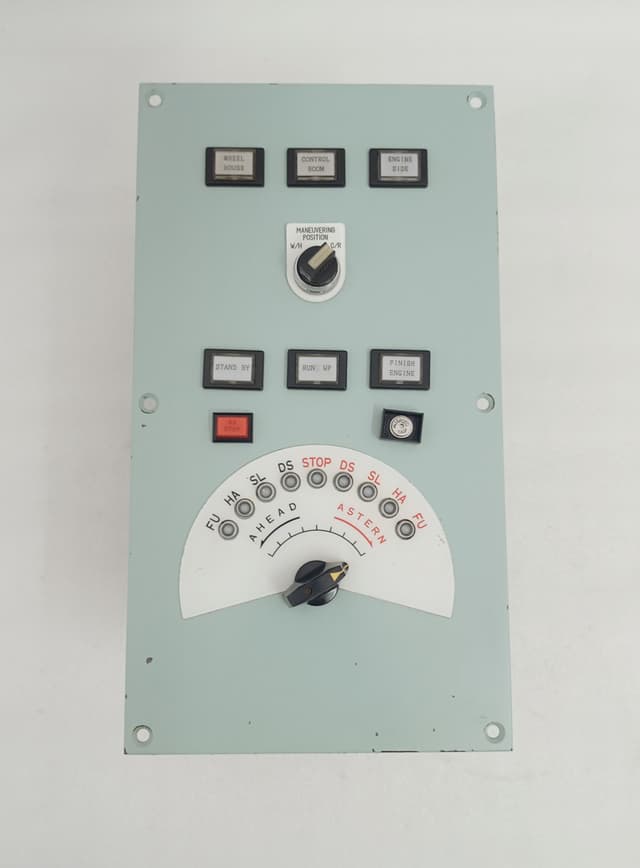

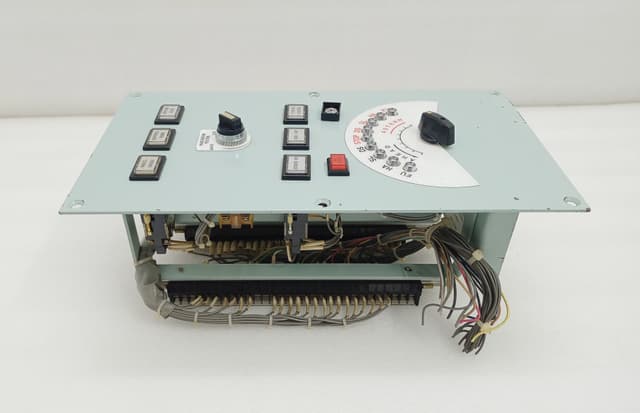

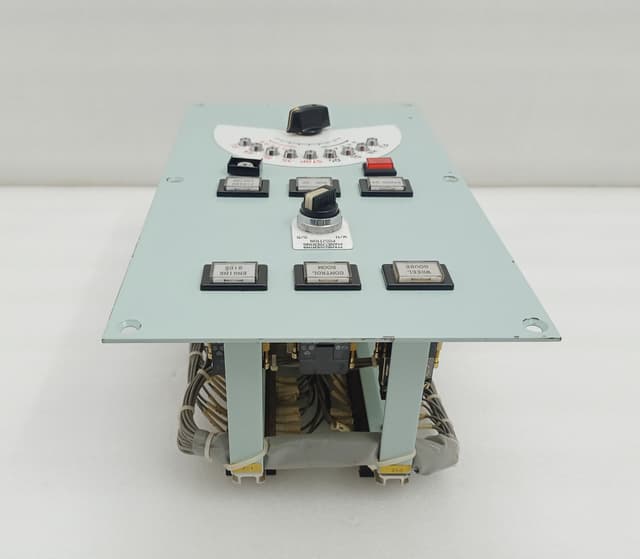

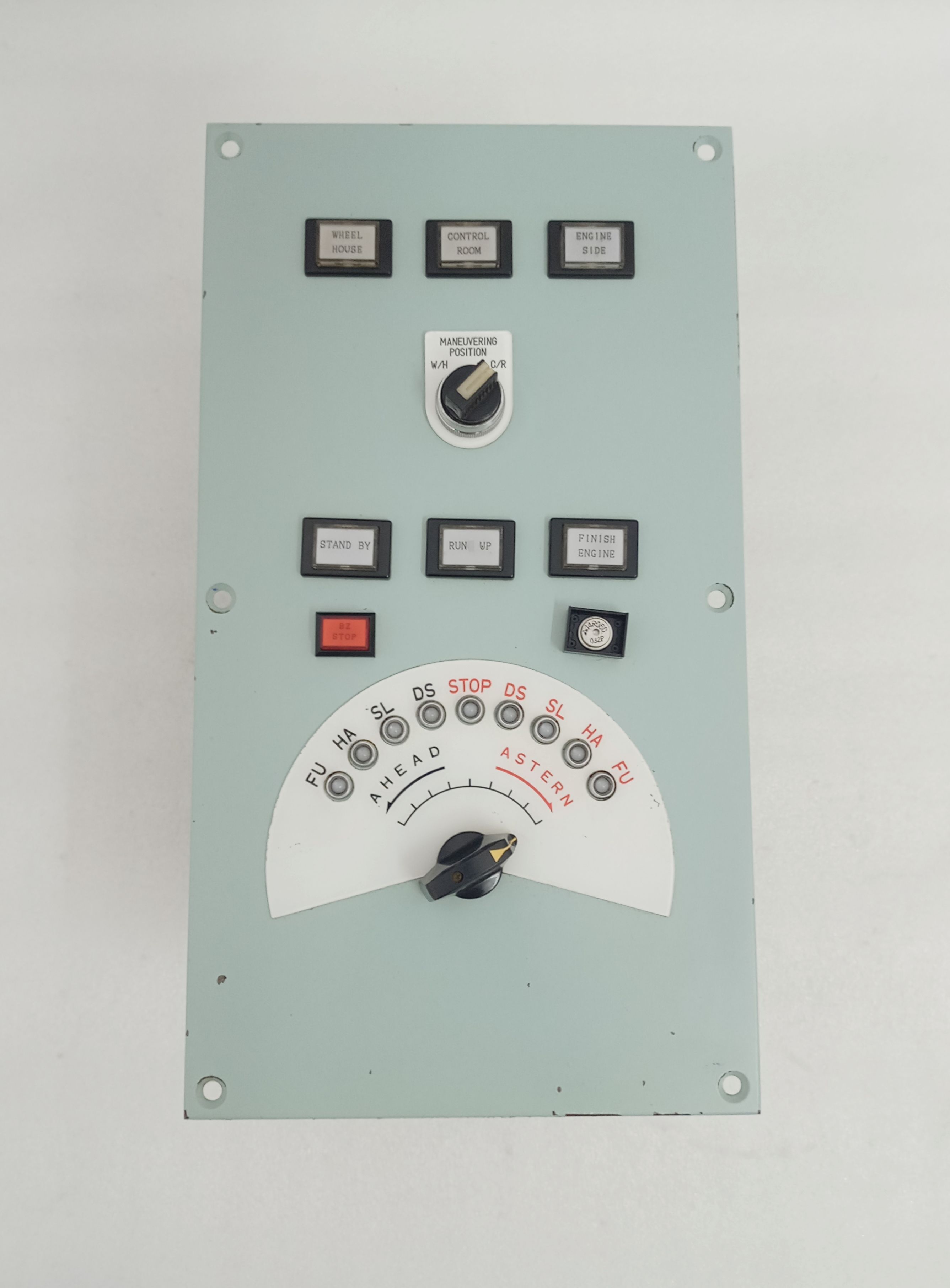

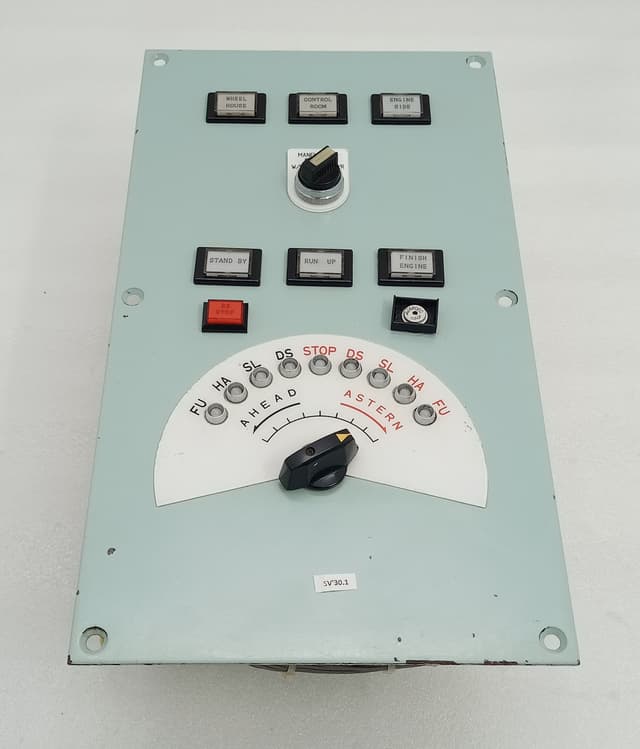

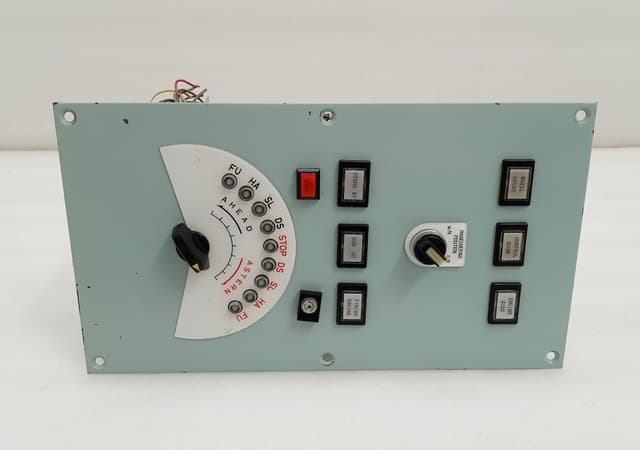

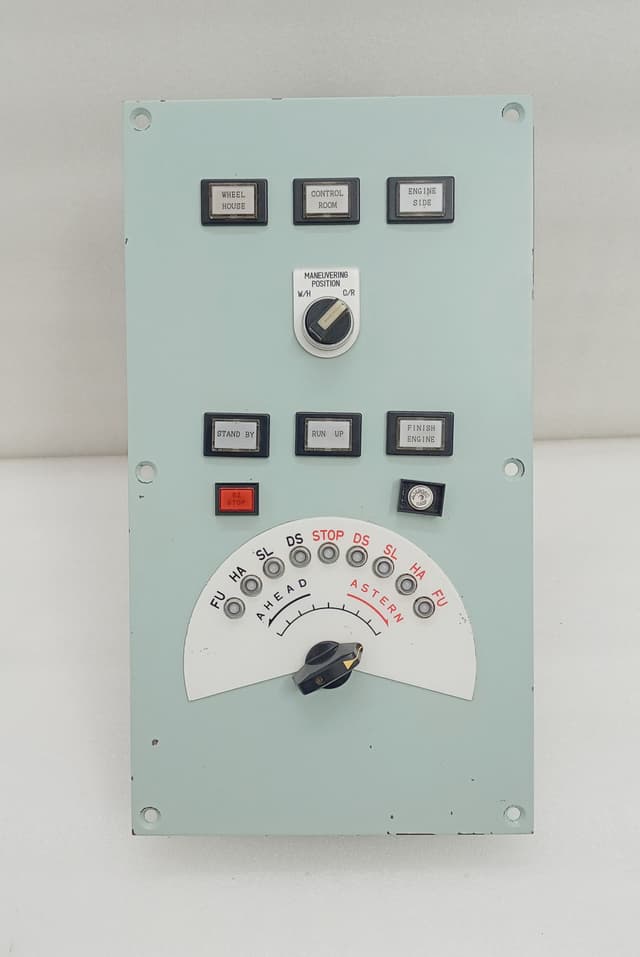

Genuine Mitsui marine engine control panel as shown in the photographs.

IDENTIFICATION:

Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd.
System: BMS-1500

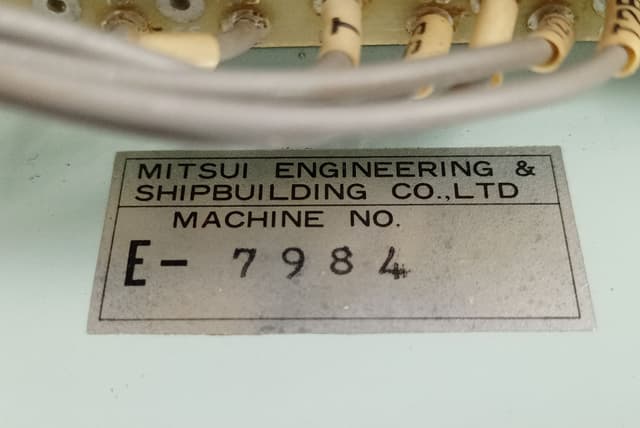

Machine No.: E-7984

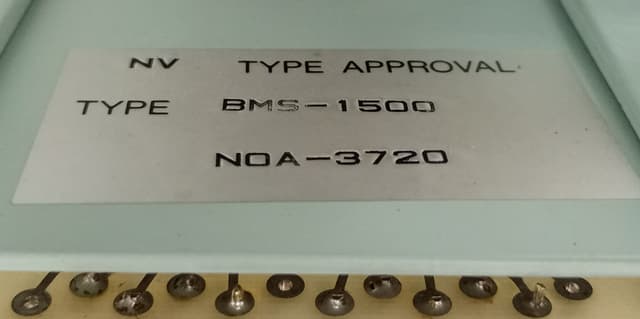

Type Approval: NV
Approval No.: NOA-3720

FRONT PANEL MARKINGS:

• WHEEL HOUSE
• CONTROL ROOM
• ENGINE SIDE
• MANEUVERING POSITION
• W/H – Wheel House
• C/R – Control Room
• STAND BY
• RUN UP
• FINISH ENGINE
• BZ STOP
• LAMP TEST
• AHEAD
• ASTERN
• FU – Full
• HA – Half
• SL – Slow
• DS – Dead Slow
• STOP

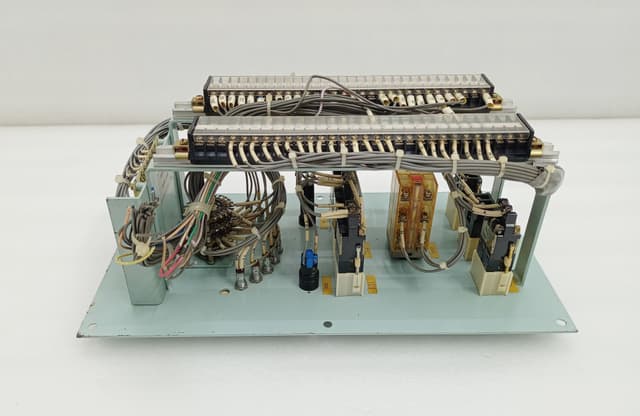

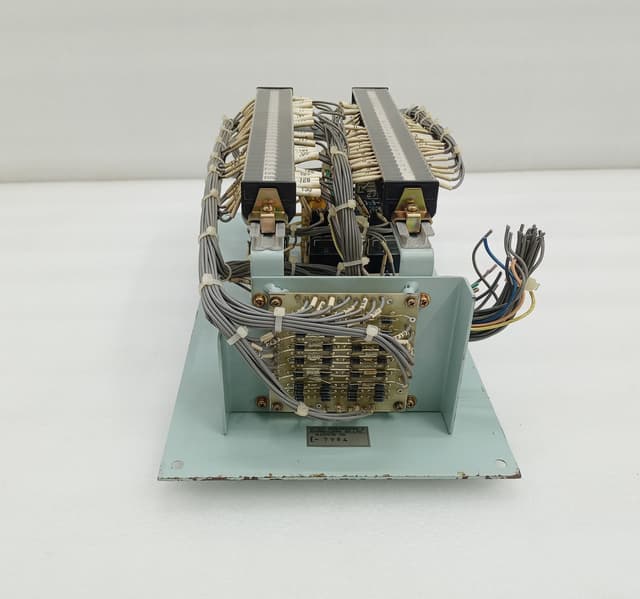

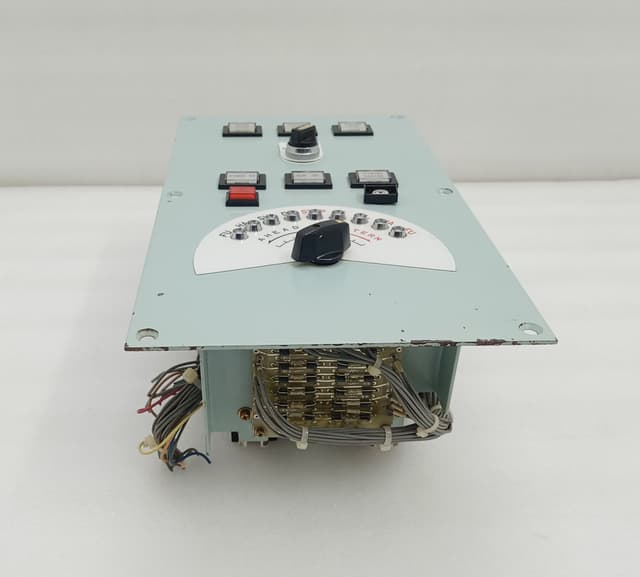

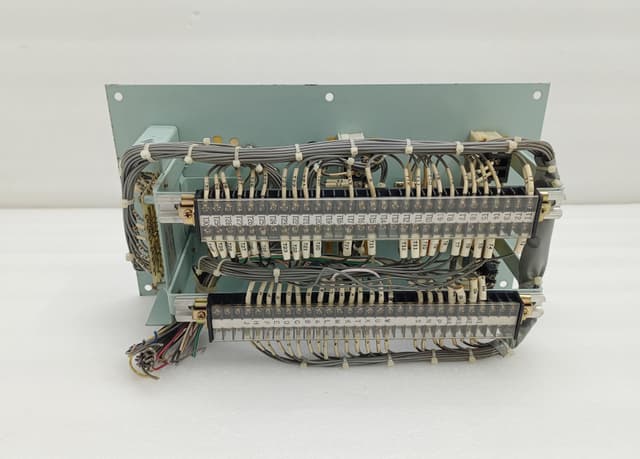

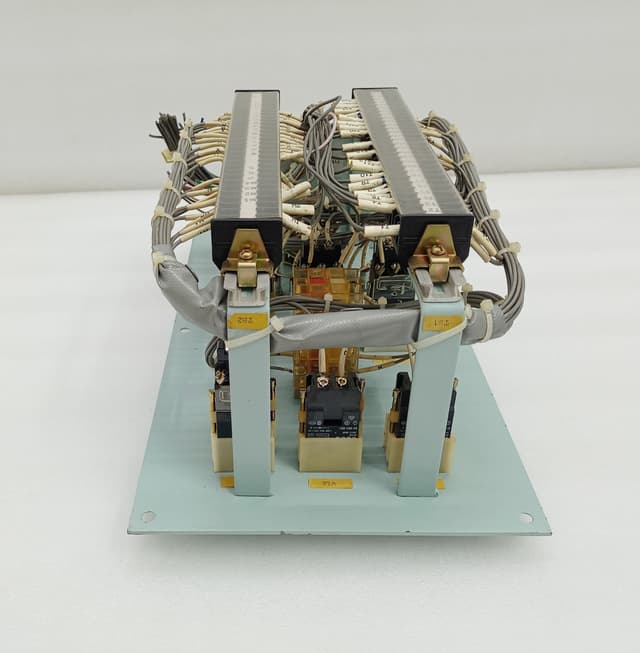

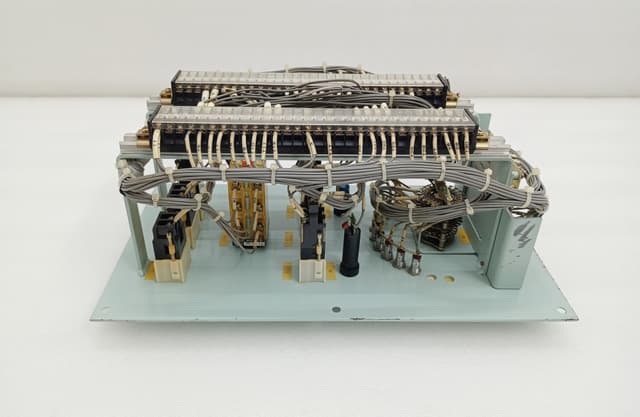

The panel includes the original rotary maneuvering selector, indicator lamps, switches, wiring and internal control components as shown.

Mitsui BMS-1500 Marine Engine Maneuvering Control Panel E-7984 NV

Mitsui Engineering BMS-1500 Telegraph Transmitter Control Panel E-7984 NV
Mitsui Zosen BMS-1500 Marine Engine Control Station Panel Machine E-7984

• Brand: Mitsui Engineering & Shipbuilding Co., Ltd. (Japan)
• System Model: BMS-1500 Electronic Governor System
• Machine Serial Number: E-7984
• Marine Classification Certificate: NV (DNV) Type Approved — NOA-3720
• Control Interlocking Switches:
  • 1x Maneuvering Position Rotary Toggle Selector (W/H / C/R)
  • 1x 9-Position Ahead/Astern Order Telegraph Dial
• Status Indicators / Display Blocks: Wheel House, Control Room, Engine Side, Stand By, Run Up, Finish Engine, and dedicated alarm/trip indicator push buttons.
• Panel Style: Surface / Console Flush Mount (4 Corner Mounting Holes)

Genuine Mitsui Engineering BMS-1500 Main Telegraph Transmitter Console Panel — Machine No. E-7984Up for listing is a highly sought-after, commercial maritime command component: the Main Engine Telegraph Transmitter & Status Indicator Panel. Manufactured by the automation division of Mitsui Engineering & Shipbuilding Co., Ltd., this high-integrity console module belongs to the BMS-1500 Electronic Governor platform family and holds verified NV Type Approval (NOA-3720).Detailed Panel Interfaces:

• Command Routing Matrix: Features clear top indicator status modules for tracking control authority: WHEEL HOUSE, CONTROL ROOM, and ENGINE SIDE. Includes a central rotary toggle labeled MANEUVERING POSITION (W/H - C/R).
• Operation Status Readouts: Outfitted with mid-panel status indicators tracking engine preparation stages: STAND BY, RUN UP, and FINISH ENGINE. Accompanied by integrated push button elements.
• Propulsion Order Selector: The lower segment houses a heavy-duty, smooth-stepping 9-position order telegraph dial splitting symmetrical propulsion fields (FU / HA / SL / DS / STOP / DS / SL / HA / FU) across distinct Ahead and Astern directional tracking markers.
