Mitsui BMS-1500 Marine Engine Control System E-7986 NV Type Approval NOA-3720

Product Description

Mitsui BMS-1500 Marine Engine Control System E-7986 NV Type Approval NOA-3720
MITSUI ENGINEERING & SHIPBUILDING CO., LTD.
BMS-1500 MARINE ENGINE CONTROL SYSTEM
Genuine Mitsui Engineering & Shipbuilding marine control system assembly.

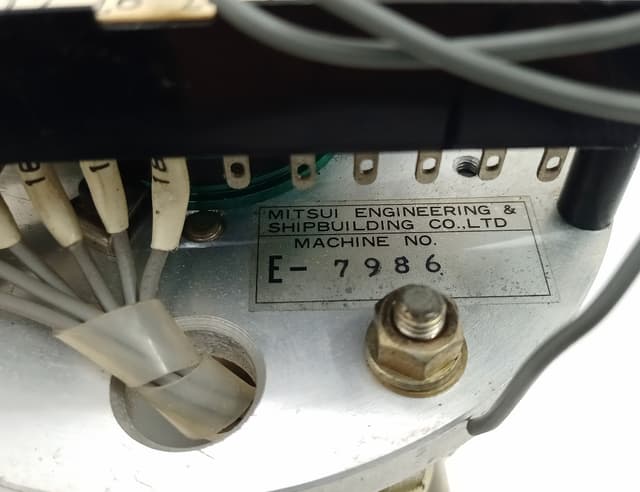

VISIBLE IDENTIFICATION:
Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd.

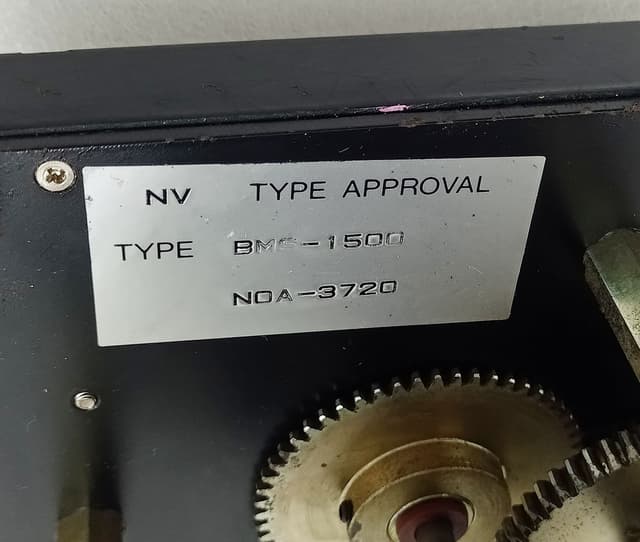

System / Type: BMS-1500 Machine No.: E-7986 Type Approval: NV Approval No.: NOA-3720 APPLICATION: Marine Engine Control System / Marine Diesel Engine Control Equipment
Key Hardware Highlights:

• Dual-Action Command Faceplate: Outfitted with a high-contrast white analog dial ranging from 0–10 with explicit "START" and "STOP" perimeter markers.
• Fine-Tuning Adjuster: Features a heavy-duty "PULL / FINE ADJ." central command knob that engages an internal mechanical gear reduction set for precise engine RPM regulation.

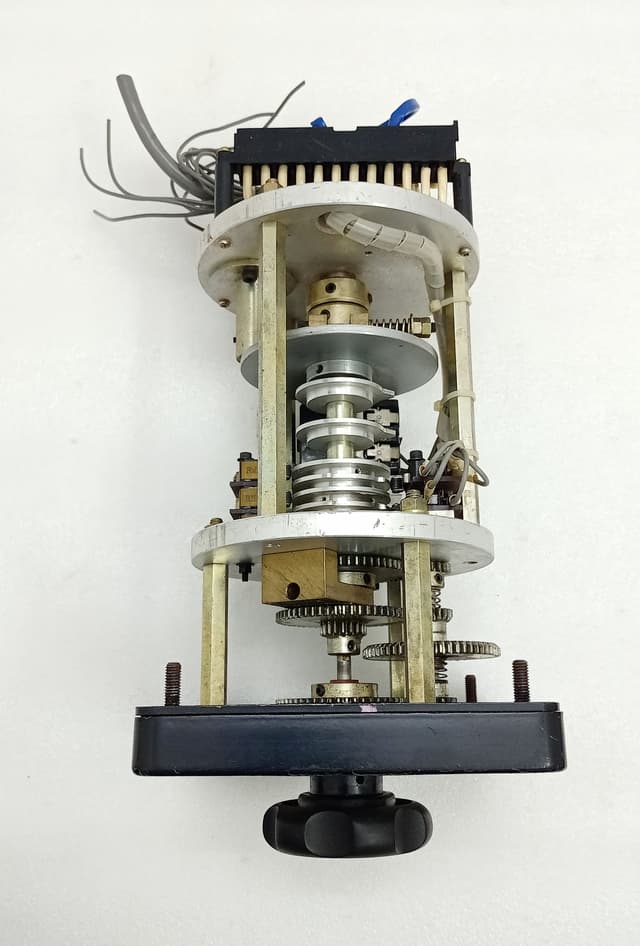

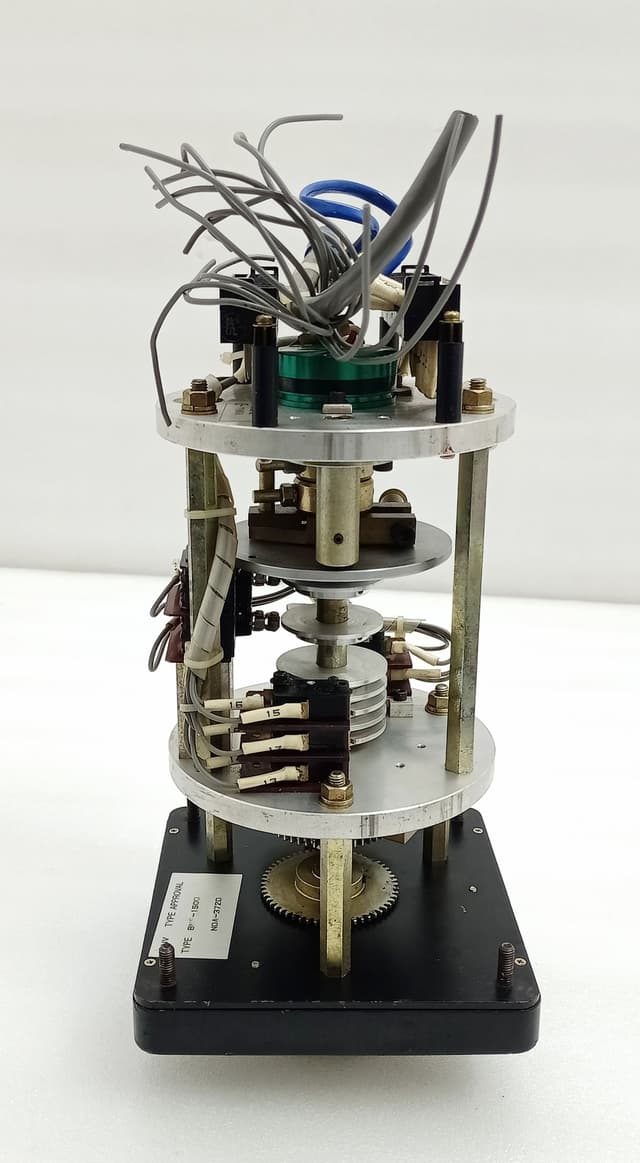

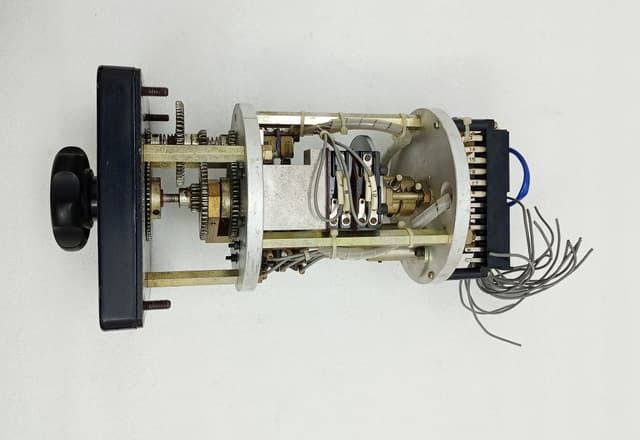

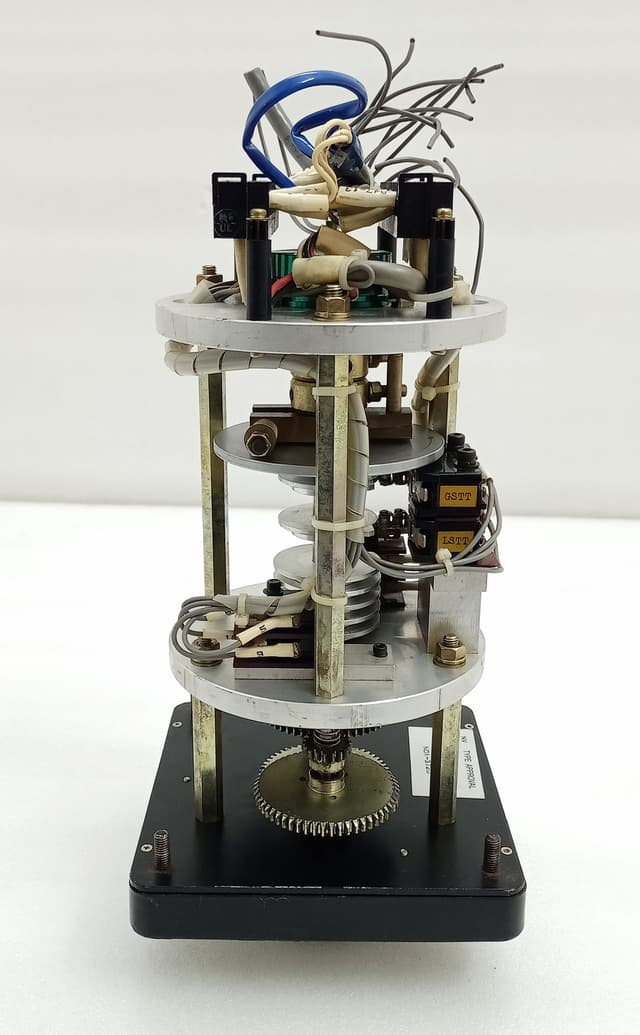

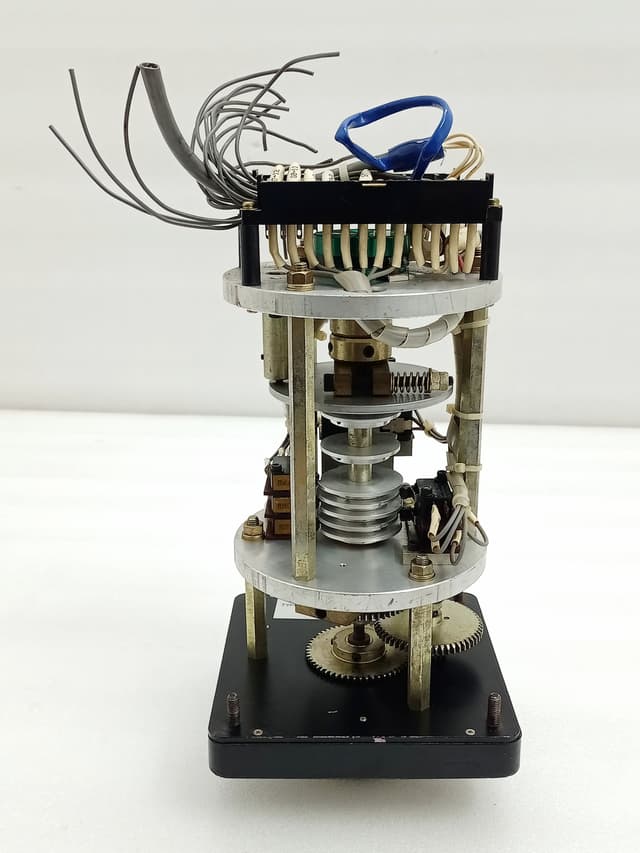

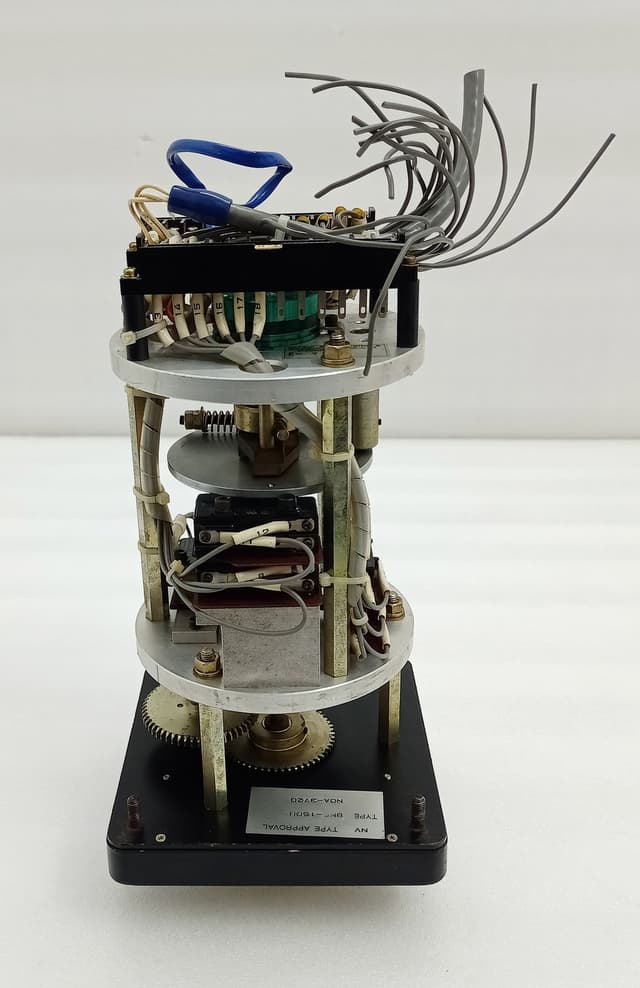

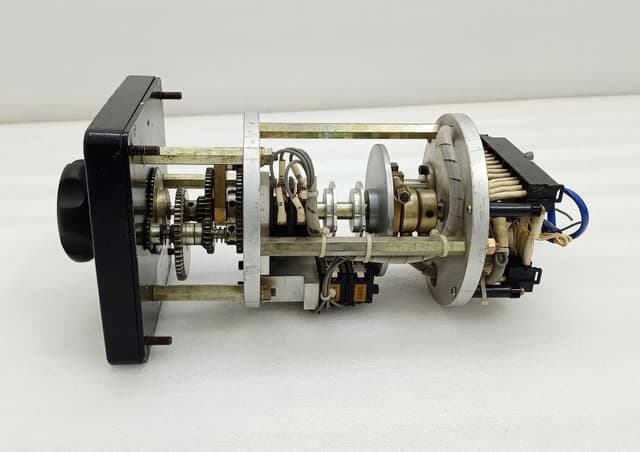

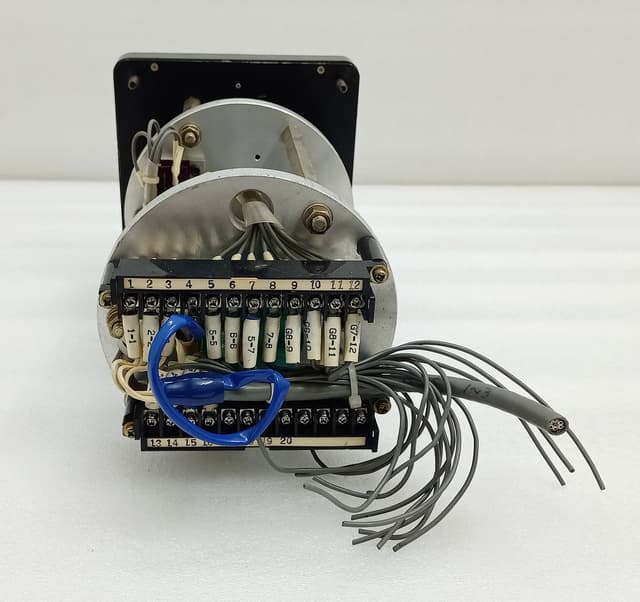

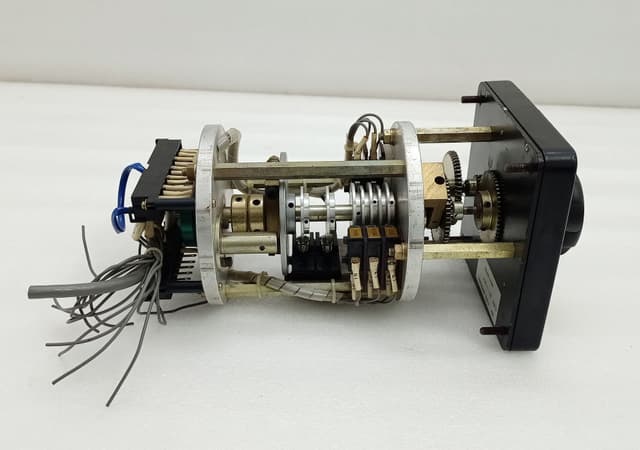

• Exposed Industrial Interior: The rear core boasts a precise multi-tier brass gear array, integrated wire bundles, multi-contact signal wipers, and durable structural support rods.

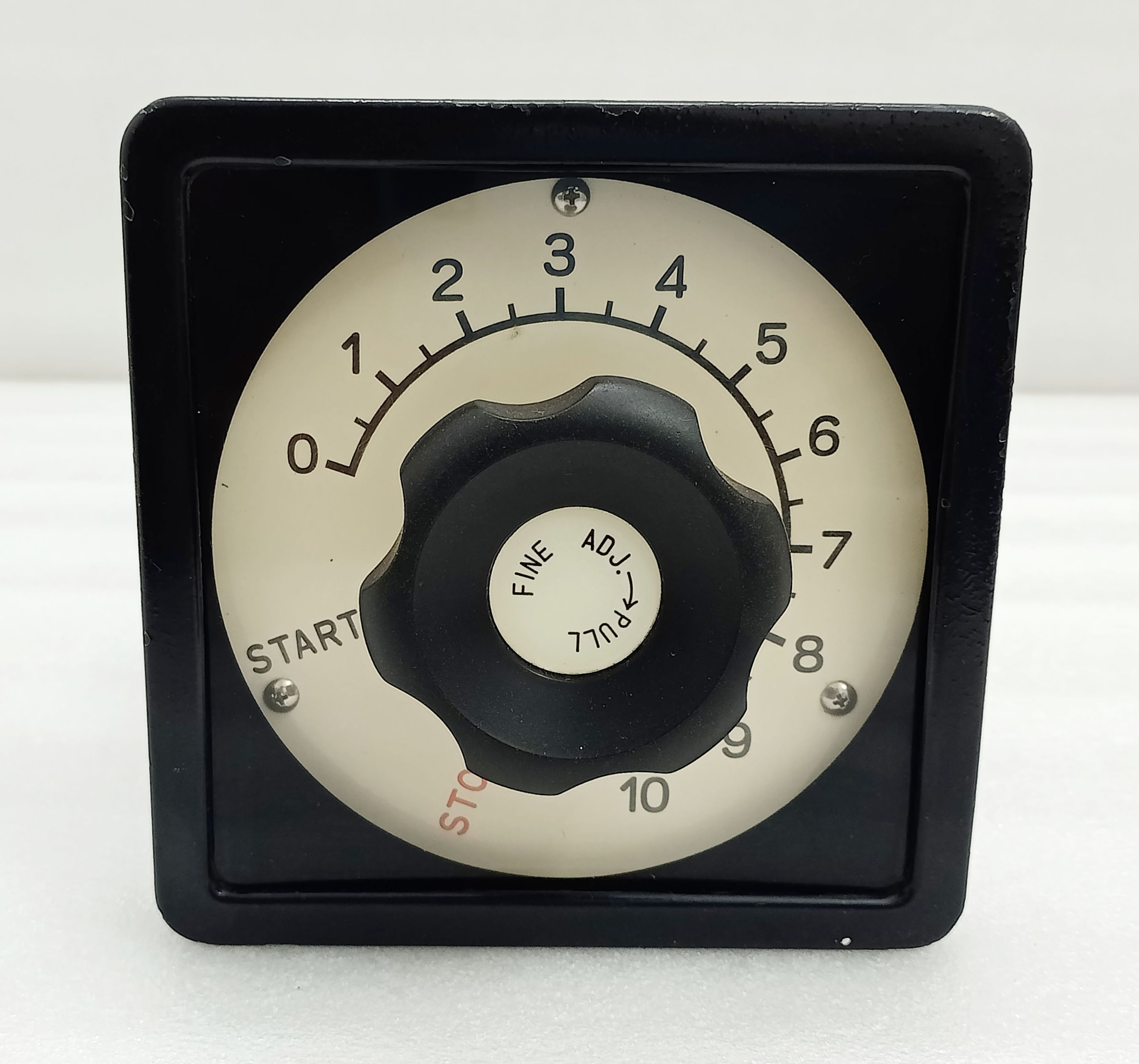

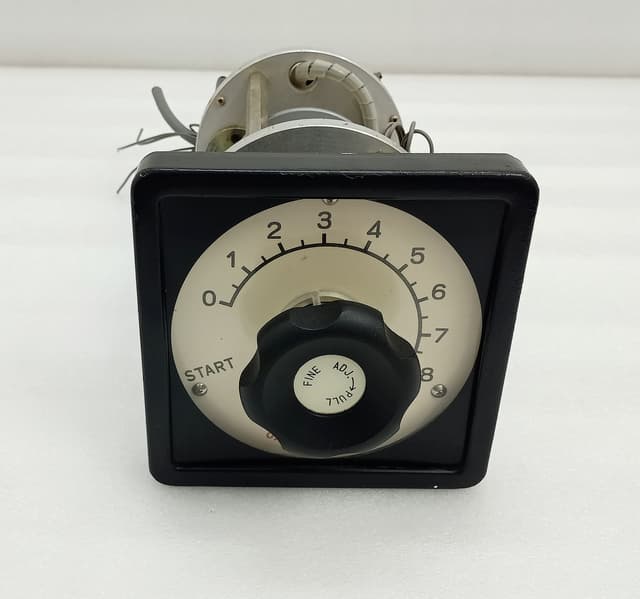

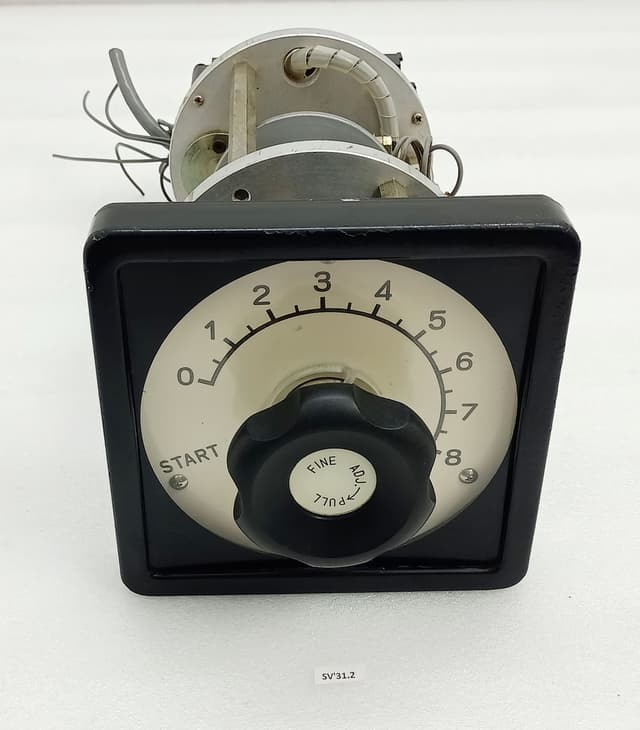

Front Dial / Controller — Visible Markings

START → 0 → 1 → 2 → 3 → 4 → 5 → 6 → 7 → 8 → 9 → 10 → STOP

Center adjustment knob:

• Large black rotary control knob.
• Center marking clearly reads:
  • FINE
  • ADJ.
  • PULL
• The center label also has an arrow indicating the adjustment/pull direction.
