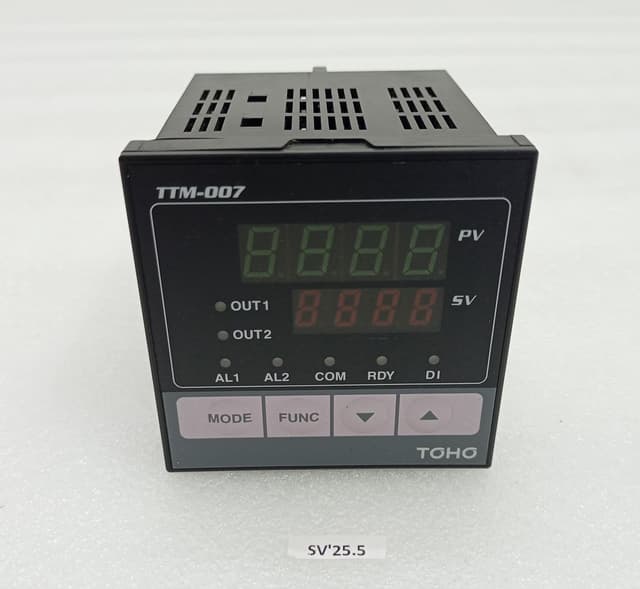

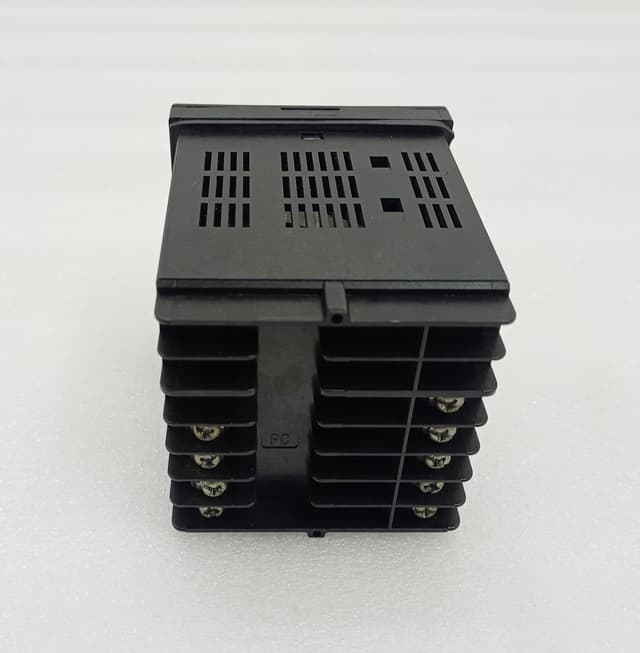

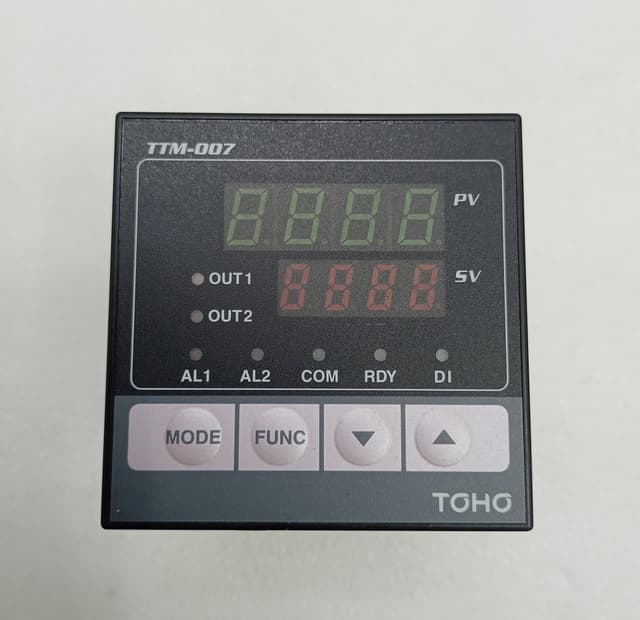

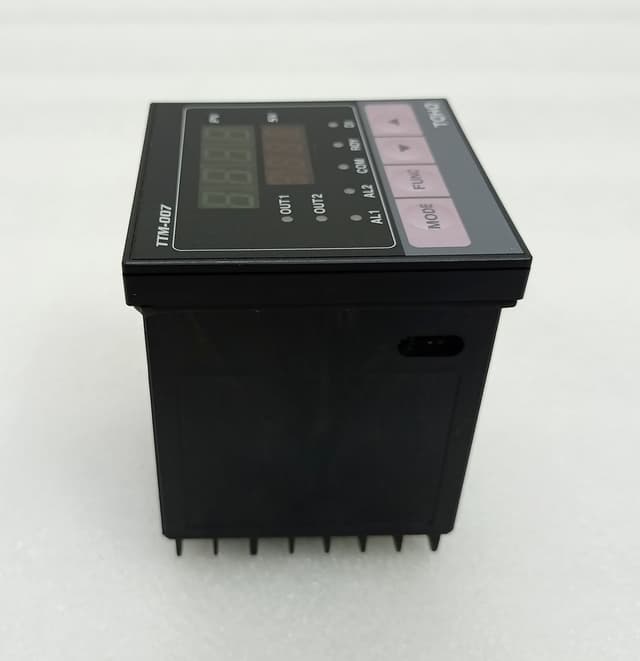

SaleToho TTM-007 Digital Temperature Controller TTM-007-R-A 100-240VAC 50/60HZ 10VA
$189
In Stock
BrandToho Electronic
ConditionUsed - Like New
Equipment Type
Product Description
Toho TTM-007 Digital Temperature Controller TTM-007-R-A 100-240VAC 50/60HZ 10VA
- Brand: Toho Electronics Co., Ltd.
- MPN: TTM-007
- Type: Digital Temperature Controller / PID Panel Meter

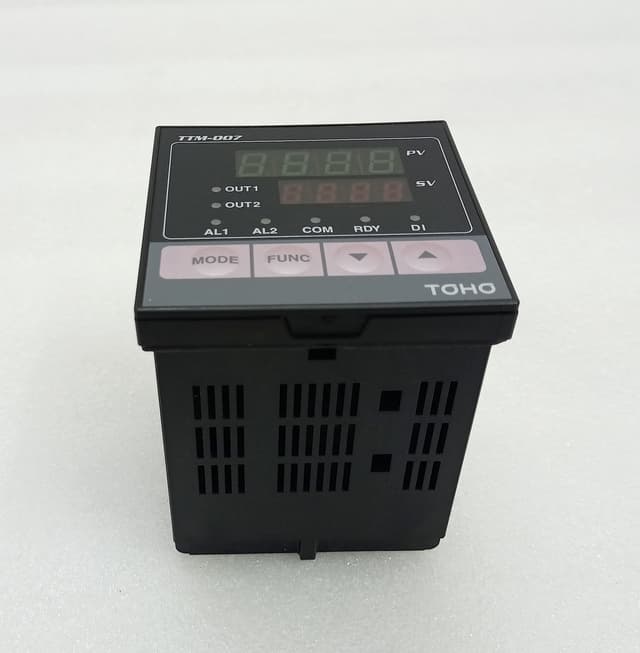

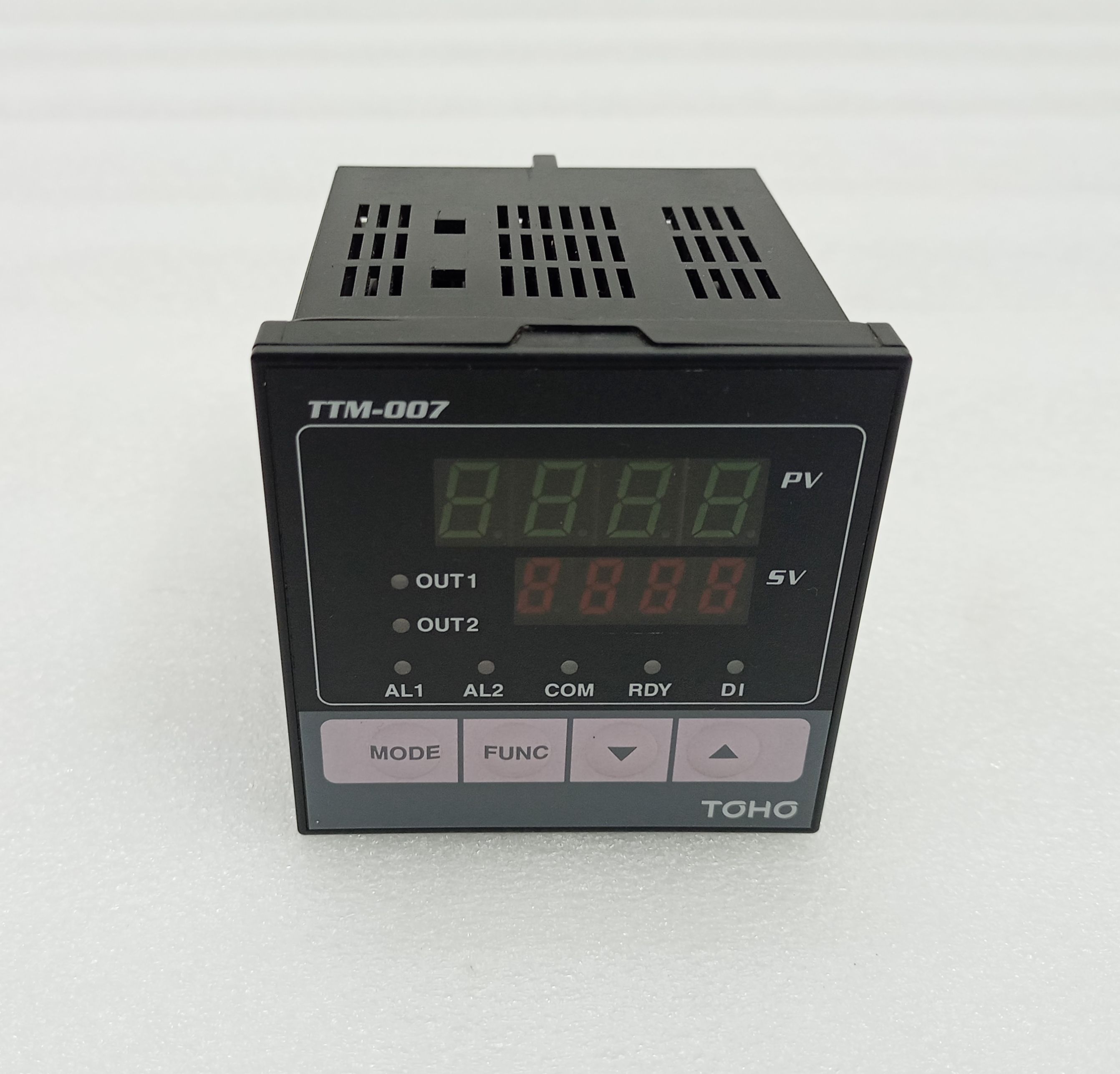

- Display Type: Dual Digital 7-Segment LED (PV / SV Display)
- Control Buttons: MODE, FUNC, Up Arrow, Down Arrow
- Control Outputs Supported: OUT1, OUT2 (LED Indicators)
- Alarm Outputs Supported: AL1, AL2
- Country/Region of Manufacture: Japan
- Brand: Toho Electronics Inc.
- Full Model Number: TTM-007-R-A
- Power Supply Input: 100–240 V AC (50/60Hz, 10VA)

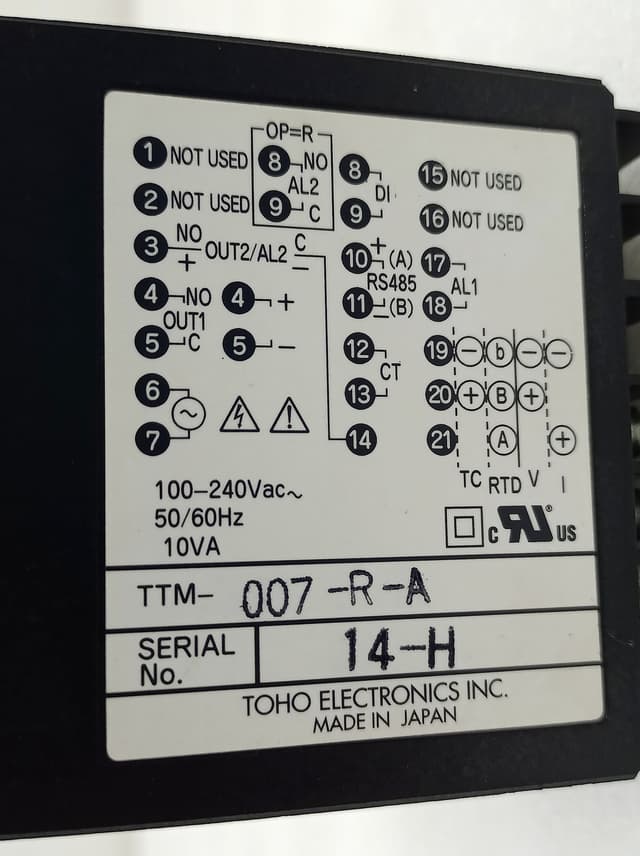

- Primary Output (OUT1): Relay Output (Pin 4: NO, Pin 5: C)
- Secondary Output (OUT2 / AL2): Relay Output Option [OP=R] (Pin 8: NO, Pin 9: C)
- Communication Port: RS-485 Serial Interface (Pins 10+, 11-)
- Alarm Outputs: AL1 (Pins 17, 18), AL2 (Pins 8, 9)
- Supported Inputs: Thermocouple (TC), RTD (Pt100), Voltage (V), Current (I)
- Serial Number: 14-H
- Country of Manufacture: Japan
- Certifications: cRUus (UL Recognized)
