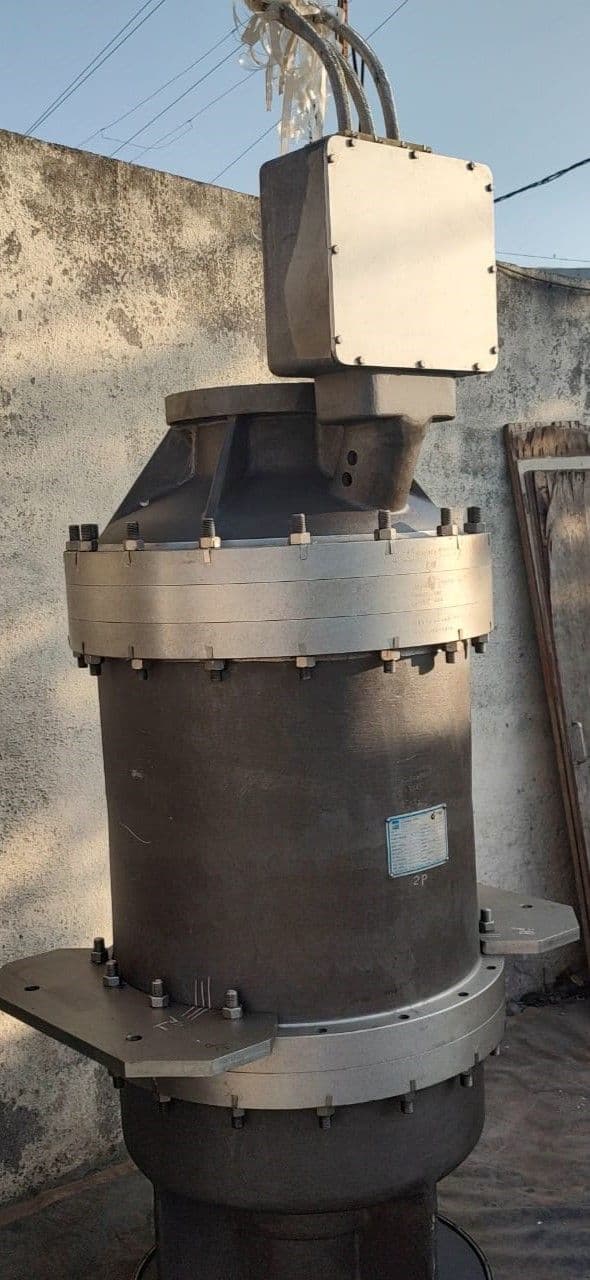

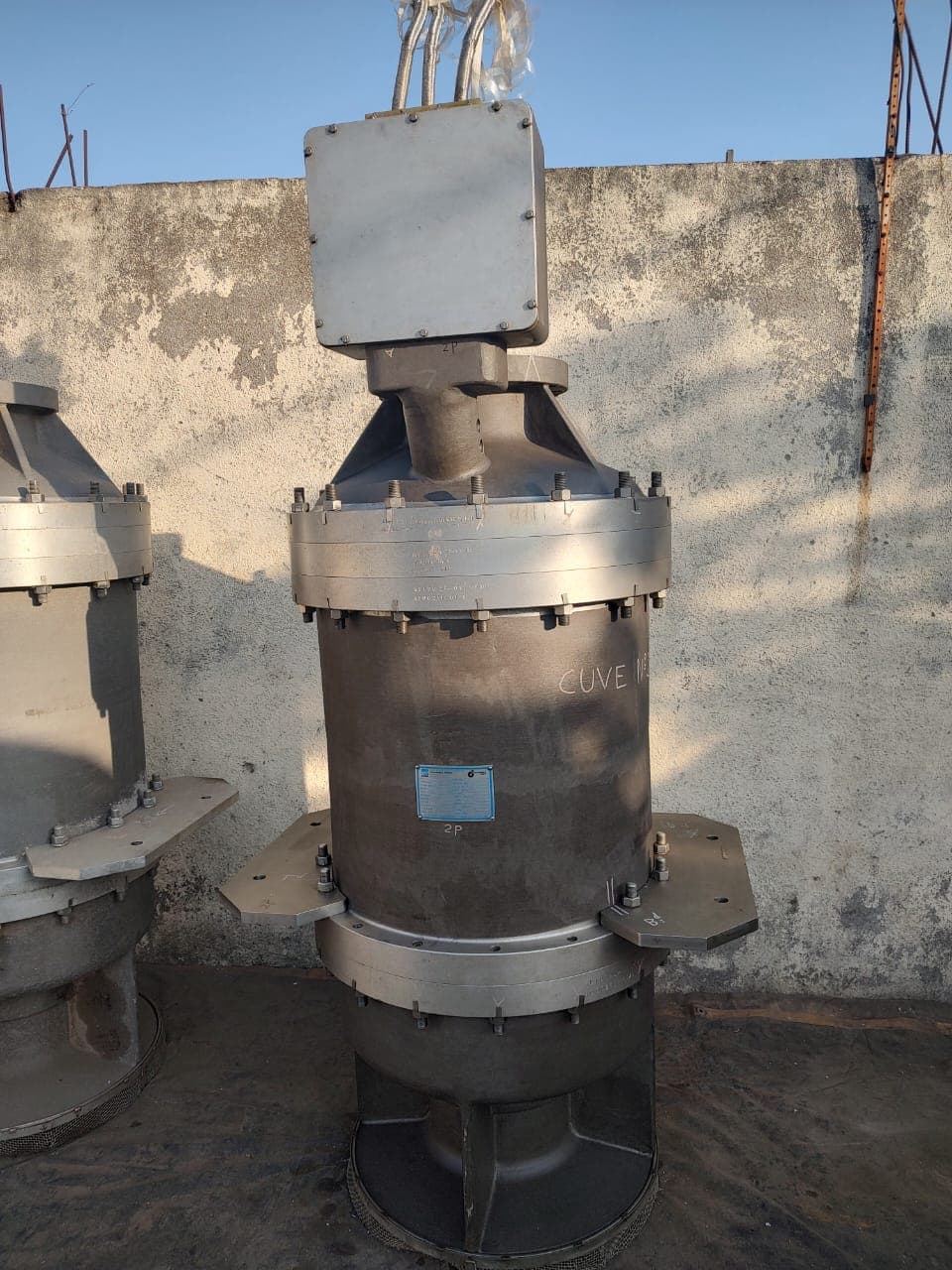

EBARA 10EC-24 LNG Cryogenic Pump | Main Cargo Pump

Product Description

EBARA 10EC-24 LNG Cryogenic Pump / Main Cargo Pump

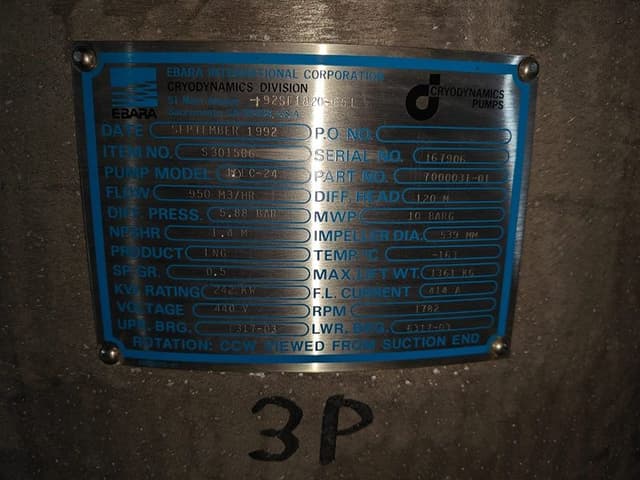

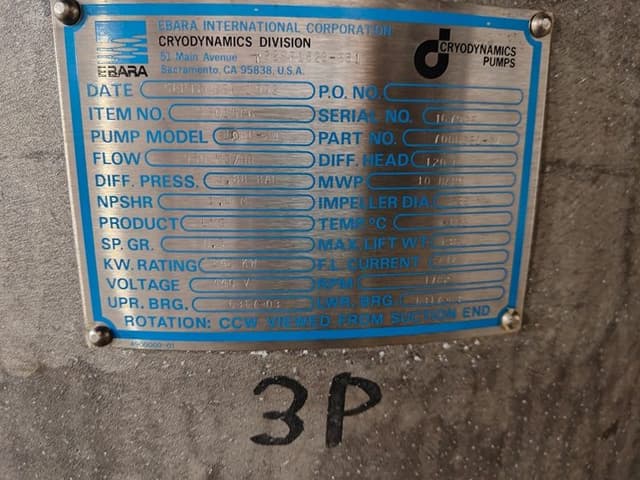

Part Number: 7000031-01

Model: 10EC-24
Flow: 950 M3/HR
F.L. Current: 414 A
Voltage: 440A
RPM 1782

Diff Head 120 Barg

Diff Pressure 5.88 bar

MWP 10 Barg

NPSHR 1.4 M

Impeller Dia 539 mm

Temp -163 C

SP GR. 0.5

KW Rating 242 KW

F.L. Current 414 A

Upr. Brg. 6317-03

Lwr. Brg. 6317-03

Main Cargo Pump

Maker: EBARA International Corp.

Each tank on a liquefied gas carrier typically has two main cargo pumps installed. With Cryodynamics pumps installed, an entire ship’s cargo can be unloaded in approximately 12 hours (usually less). A single-stage design is most often used although multi-stage pumps can also be supplied if required.
